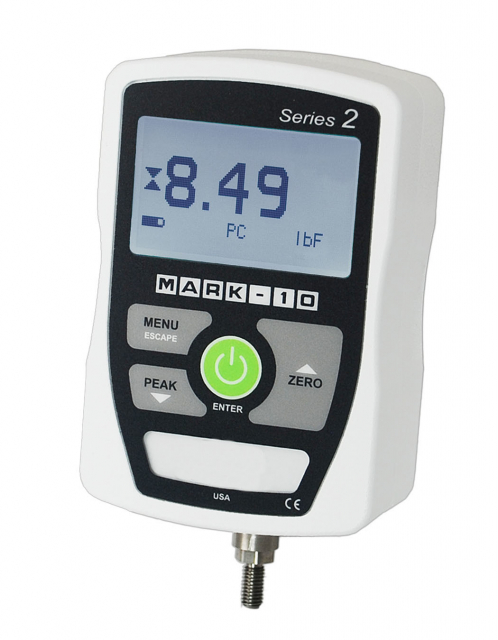

Mark-10, M2-2, Series 2 Economical Digital Force Gauge, 2 lbF / 1 kgF / 10 N

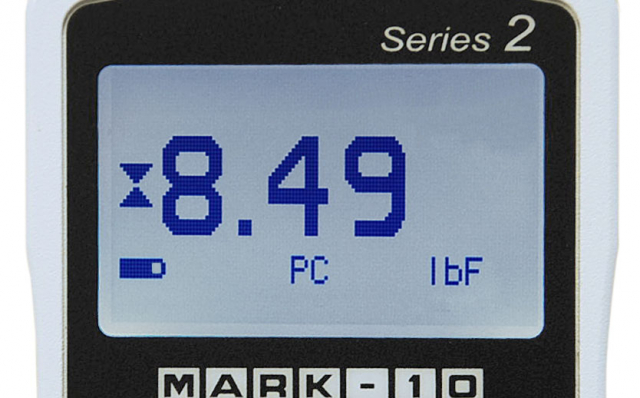

Series 2 digital force gauges are designed for basic tension and compression force testing applications. A backlit graphic LCD displays the current, peak tension, or peak compression reading.
The gauges are overload protected to 200% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.

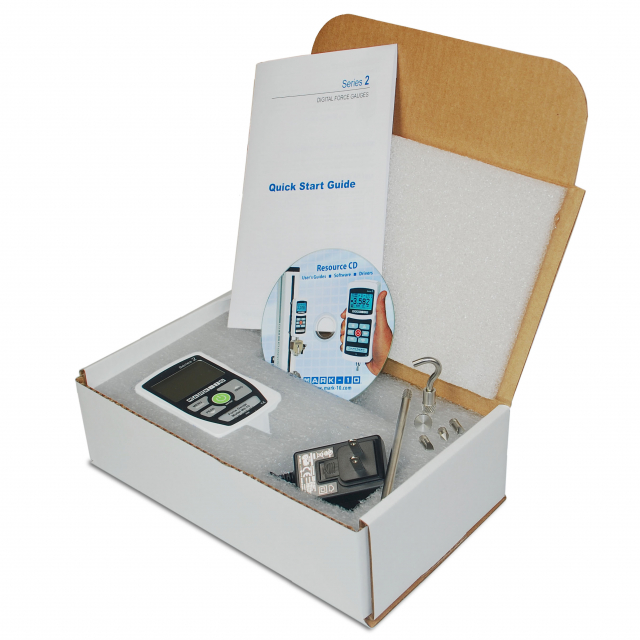

Includes:
- AC adapter
- Rechargeable battery
- Quick-start guide
- Resource CD
- Certificate of conformance
Features:
- Calculates peak tension and compression values
- 3 selectable units of measurement
- Ultra-compact, ergonomic housing
- Configurable default measurement unit and mode
- 500 Hz sampling rate
- Large, backlit graphic display with auto-dimming
- Powered by 9V battery or available AC adapter
- Reversible housing for alternate load cell orientation
Display Indicators:

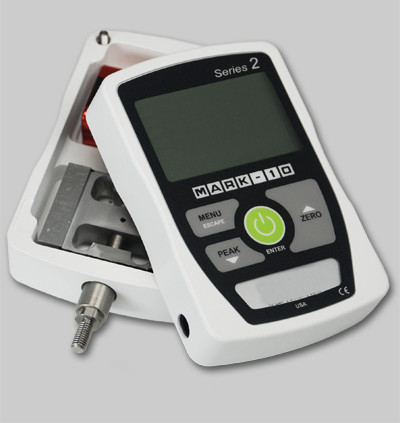

Force on Engineering: Reversible Housing
