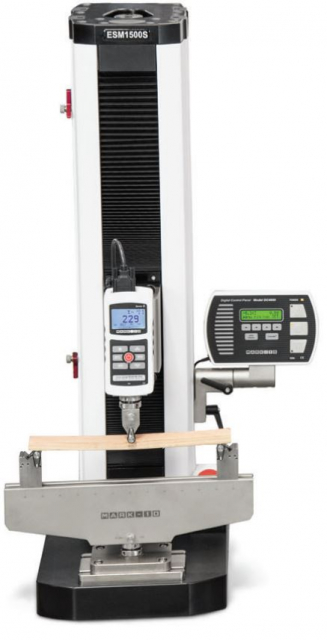

ESM1500SLC, Motorized Test Stand with Load Cell Mount, 1,500 lbF / 6.7 kN, 110V*

Includes:

Features:

Broad force range and clearance dimensions
Compatible with load cells and force gauges
USB output of force vs. time or force vs. distance
Adjustable, removal control panel with intuitive menu navigation
Unique modular function platform - select functions as required for the application
Password protection of test parameters
Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
Compact footprint, suitable for crowded workbenches
Most electronics are housed in an integrated removeable enclosure, easily accessed for service

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Load capacity:	1,500 lbF [6.7 kN] at < 60 in [1,525 mm]/min 1,000 lbF [4.5 kN] at > 60 in [1,525 mm]/min
Maximum travel distance:	14.2 in [360 mm]
Standard speed range:	0.5 - 24 in/min [10 - 600 mm/min]
Available speed range:	0.001 - 90 in/min [0.02 - 2,300 mm/min]
Speed setting accuracy:	±0.2% of setting
Speed variation with load:	±0% [stepper motor driven]
Travel accuracy:	±0.002 in. per 10 in. [±0.05 mm per 250 mm]
Travel resolution:	0.001 in [0.02 mm]
Limit switch repeatability:	±0.001 in [0.03 mm]
Power:	Universal input 80-240 VAC, 50/60 Hz, 450W
Weight:	160 lb [72 kg]
Shipping weight:	248 lb [113 kg]
Conformance:	206 lb [93 kg]

Load capacity:	1,500 lbF [6.7 kN] at < 60 in [1,525 mm]/min 1,000 lbF [4.5 kN] at > 60 in [1,525 mm]/min
Maximum travel distance:	14.2 in [360 mm]
Standard speed range:	0.5 - 24 in/min [10 - 600 mm/min]
Available speed range:	0.001 - 90 in/min [0.02 - 2,300 mm/min]
Speed setting accuracy:	±0.2% of setting
Speed variation with load:	±0% [stepper motor driven]
Travel accuracy:	±0.002 in. per 10 in. [±0.05 mm per 250 mm]
Travel resolution:	0.001 in [0.02 mm]
Limit switch repeatability:	±0.001 in [0.03 mm]
Power:	Universal input 80-240 VAC, 50/60 Hz, 450W
Weight:	160 lb [72 kg]
Shipping weight:	248 lb [113 kg]
Conformance:	206 lb [93 kg]

Note: Please read description carefully. Do not base your order on the picture presented.
