Options and Related Products

Voltage:: Voltage: 12V / 24V

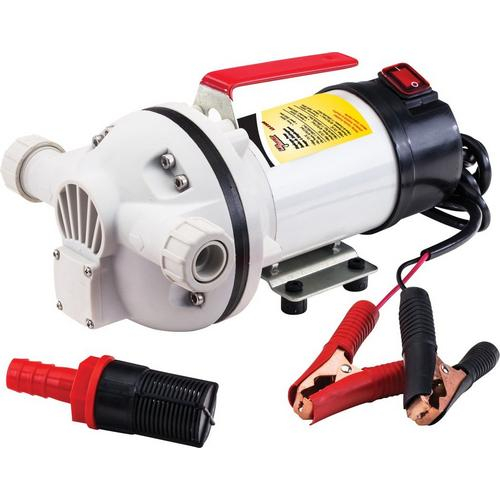

Lumax, LX-1360, Diaphragm Pump, 12V / 24V

Wetted Components: Nylon/Polyamide (NYL); Polypropylene (PP); Thermoplastic Polyurethane (TPU); Nitrile Rubber (Buna-N/NBR); Stainless Steel (SS 304)

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Voltage	12VDC
Power	300W
Motor Amps	16A
Switch	On/Off
Flow Rate	11 GPM (40 L / Min)
Continuous Duty Cycle	30 Minute
Max. Suction Lift	10 ft. (3 m)
Max. Total Head	23 ft. (7 m)
Speed	2850 RPM
Self-Priming	Up to 10 ft. (3 m) above liquid level
Pressure	40 PSI (3 bar)
Inlet Diameter	3/4" (19 mm), Pipe Thread
Viscosity	Up to 4600 SSU/1000 cPs max.
Outlet Diameter	1" (25 mm), Pipe Thread
PH (High)	8 PH
Maximum Liquid Temperature	140°F (60°C)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

warning WARNING: Not Suitable for Use With Oil or Petroleum-Based Products such as Kerosene, Diesel, Gasoline, etc. Chemical Compatibility Chart.

Product Details

Voltage	12VDC
Power	300W
Motor Amps	16A
Switch	On/Off
Flow Rate	11 GPM (40 L / Min)
Continuous Duty Cycle	30 Minute
Max. Suction Lift	10 ft. (3 m)
Max. Total Head	23 ft. (7 m)
Speed	2850 RPM
Self-Priming	Up to 10 ft. (3 m) above liquid level
Pressure	40 PSI (3 bar)
Inlet Diameter	3/4" (19 mm), Pipe Thread
Viscosity	Up to 4600 SSU/1000 cPs max.
Outlet Diameter	1" (25 mm), Pipe Thread
PH (High)	8 PH
Maximum Liquid Temperature	140°F (60°C)

Optional Accessories

Optional Accessories

Note: Please read description carefully. Do not base your order on the picture presented.
