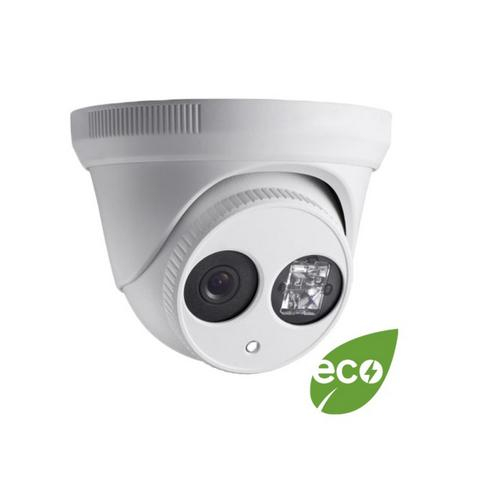

LTS CMHT2722 Platinum HD-TVI Turret Camera, 2.1MP, 1080P

  • Brand LTS
  • Part # CMHT2722
  • Model # Platinum
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Features:

  • 2.1MP High Definition
  • Full HD 1080P
  • 1920X1080P at30fps
  • 3.6mm Fixed Lens
  • 1 Matrix IR LED up to 131ft
  • Outdoor/Indoor
  • DC 12V
  • IP66
  • UTC
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
Image Sensor1 / 2.7' Sensor
Signal SystemNTSC/PAL(Euro Version)
Effective Pixels1930(H)*1088(V)
Min. Illumination0.1 Lux at(F1.2,AGC ON), 0 Lux with IR
Shutter SpeedNTSC:1/30 s(PAL:1/25 s) to 1/50,000s
Lens3.6mm
Day & NightAngle of View: 90°
SynchronizationICR
Video Frame RateInternal synchronization
HD Video OutputNTSC: 1080p at30fps/PAL: 1080p at25fps
HD Video Output1 HD-TVI Output
S/N RatioMore than 52dB
Camera IDOn/Off (0-255)
AGCSupport
D/N ModeColor/BW/Auto/EXT
White BalanceAuto/User/Push/8000K/6000K/4200K/3200K/HOLD
Privacy MaskOn/Off, Maximum 2 zones
Motion DetectionOn/Off
BLCSupport
Anti-FlickerOn/Off
LanguageEnglish, Chinese
FunctionMirror
Working Temperature
/Humidity		-40 °F - 140°F (-40 °C - 60°C)
Humidity 90% or less (non-condensing)
Power Supply12V DC
Power ConsumptionMax. 3W
Weather Proof RatingsIP66
IR RangeUp to 131ft (40m)
Dimensionsφ5.0"x4.0" (φ126.7 x 102.1mm)
Weight1.1lb (500g)
Product Details
Image Sensor1 / 2.7' Sensor
Signal SystemNTSC/PAL(Euro Version)
Effective Pixels1930(H)*1088(V)
Min. Illumination0.1 Lux at(F1.2,AGC ON), 0 Lux with IR
Shutter SpeedNTSC:1/30 s(PAL:1/25 s) to 1/50,000s
Lens3.6mm
Day & NightAngle of View: 90°
SynchronizationICR
Video Frame RateInternal synchronization
HD Video OutputNTSC: 1080p at30fps/PAL: 1080p at25fps
HD Video Output1 HD-TVI Output
S/N RatioMore than 52dB
Camera IDOn/Off (0-255)
AGCSupport
D/N ModeColor/BW/Auto/EXT
White BalanceAuto/User/Push/8000K/6000K/4200K/3200K/HOLD
Privacy MaskOn/Off, Maximum 2 zones
Motion DetectionOn/Off
BLCSupport
Anti-FlickerOn/Off
LanguageEnglish, Chinese
FunctionMirror
Working Temperature
/Humidity		-40 °F - 140°F (-40 °C - 60°C)
Humidity 90% or less (non-condensing)
Power Supply12V DC
Power ConsumptionMax. 3W
Weather Proof RatingsIP66
IR RangeUp to 131ft (40m)
Dimensionsφ5.0"x4.0" (φ126.7 x 102.1mm)
Weight1.1lb (500g)
