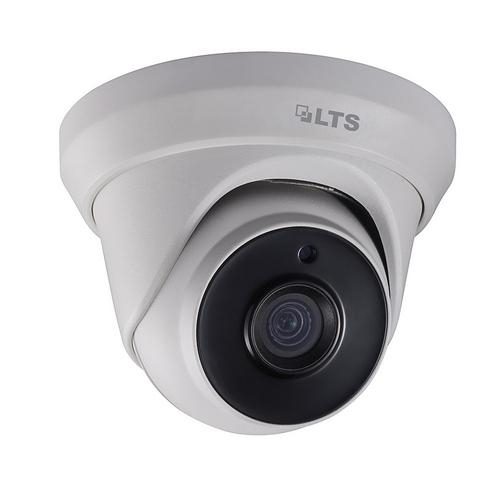

Buy LTS CMHT2722-28F, Platinum HD-TVI Turret Camera, 2.1MP

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Camera
Image Sensor	2 MP CMOS image sensor
Signal System	PAL/NTSC
Frame Rate	PAL: 1080p at 25fps NTSC: 1080p at 30fps
Resolution	1920 (H) x 1080 (V)
Min. illumination	0.01 Lux at (F1.2, AGC ON),0 Lux with IR
Shutter Time	1/25(1/30) s to 1/50,000 s
Lens	2.8mm fixed lens
Horizontal Field of View	103° (2.8 mm), 82.2°(3.6mm)
Lens Mount	M12
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization	Internal synchronization
Menu
AGC	Low/middle/high
Day/Night Mode	Smart/color/BW(Black and White)
Backlight Compensation	Yes
DWDR	Yes
Language	English
Functions	Brightness, Sharpness, DNR, Mirror
Interface
Video Output	1 HD analog output
Switch Button	TVI/AHD/CVI/CVBS
General
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply	12 V DC±15%
Power Consumption	Max. 4 W
Ingress Protection	IP66
Material	Plastic
IR Range	Up to 131ft(40 m)
Dimension	φ 5.0” x 4.0” (φ 126.7x 102.1mm)
Weight	1.1lb(500g)

Camera
Image Sensor	2 MP CMOS image sensor
Signal System	PAL/NTSC
Frame Rate	PAL: 1080p at 25fps NTSC: 1080p at 30fps
Resolution	1920 (H) x 1080 (V)
Min. illumination	0.01 Lux at (F1.2, AGC ON),0 Lux with IR
Shutter Time	1/25(1/30) s to 1/50,000 s
Lens	2.8mm fixed lens
Horizontal Field of View	103° (2.8 mm), 82.2°(3.6mm)
Lens Mount	M12
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization	Internal synchronization
Menu
AGC	Low/middle/high
Day/Night Mode	Smart/color/BW(Black and White)
Backlight Compensation	Yes
DWDR	Yes
Language	English
Functions	Brightness, Sharpness, DNR, Mirror
Interface
Video Output	1 HD analog output
Switch Button	TVI/AHD/CVI/CVBS
General
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply	12 V DC±15%
Power Consumption	Max. 4 W
Ingress Protection	IP66
Material	Plastic
IR Range	Up to 131ft(40 m)
Dimension	φ 5.0” x 4.0” (φ 126.7x 102.1mm)
Weight	1.1lb(500g)

Note: Please read description carefully. Do not base your order on the picture presented.
