| Light Source | Tungsten halogen lamp |
| Optics | Grid monochromator with reference beam and beam splitter after exit slit |
| Measurement | Concentration, single and multi-wavelength measurement of absorbance and % transmission, kinetics, spectra |
| Wavelength Range | 320 - 1100 nm |
| Wavelength Resolution | 1 nm |
| Wavelength Accuracy | ± 1 nm on all Holmium peaks |
| Wavelength Reproducibility | better than 0,5 nm |
| Spectral Scope | 4 nm |
| Photometric Range | -3.3 - +3.3 Abs |
| Photometric Resolution | Absorption: 0.001 ; Transmission: 0.1 % |
| Photometric Accuracy | 0.003 Abs below 0.6 Abs ; 0.5 % from 0.6 to 2.0 Abs |
| Photometric Reproducability | 0.003 Abs below 0.6 Abs ; 0.5 % from 0.6 to 2.0 Abs |
| Photometric Linearity | < 1 % up to 2.0 Abs between 340 to 900 nm |
| Scan Speed | 700 - 2000 nm/min. |
| Stray Light | > 0.1 % Transmission at 340 and 408 nm |
| Drift | < 0.005 Abs per hour after 15 minutes heat up time |
| Operation | Membrane Keyboard |
| Display | 7“ high contrast colour graphic-display |
| Suitable Vials | - Rectangular Cuvettes 10 mm
- Rectangular Cuvettes 20 mm
- Rectangular Cuvettes 50 mmRound Cuvettes 13 mm
- Round Cuvettes 16 mm
- Round Cuvettes 24 mm
|
| Automatic Cuvette Recognition | Round cuvettes: 13, 16 and 24 mm ; Rectangular cuvettes: 10, 20 and 50mm |
| Test Recognition | via internal barcode reader |

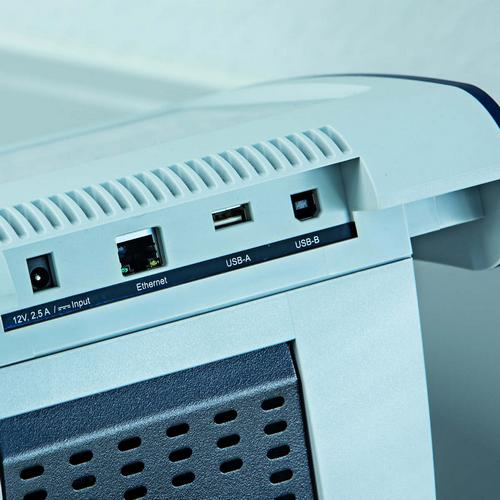

| Interfaces | - Ethernet
- USB B
- USB A for External Memory
- Keypad
- Barcode-Scanner
- PCL Compatible Printer
|
| Auto-Check | Self-test at each switch-on: test of memory, processor, internal interface, filter lamp and additional calibration of each wavelength |
| LIMS Compatibility | ASCII, .csv-files |
| Internal Storage | approx. 5000 data sets (method, user ID, date, result), autostorage function / manual storage function |
| Security | Password protection possible: 3 different user levels (guest, user, admin) |
| Power Drain | 100 - 240 V, 50/60 Hz |
| Power Supply | Buffer batteries (4 x AA), power supply unit with cable |
| Auto – OFF | Yes |
| Portability | Benchtop |
| Environmental Conditions | +10 °C to 35 °C (41 °F to 95 °F),
≤ 75 % average humidity within one year 95 %, max. 30 days/year, 85 % all other days |
| Stock Conditions | -25 °C to +65 °C (-13 °F to 268 °F) |
| Compliance | CE |
| Protection Class | IP 30 |
| IP Protection Class | EN 60529 |
| Interference Emission | Class B |
| Interference Immunity | IEC 61000-4-3 |
| Tolerance Extension | 0.008 E |
| Meter Safety | EC Directive 2014/35/EC EN 61010-1:2010 |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Polish, Indonesian, Russian, Chinese, Japanese, Dutch, Swedish, Norwegian, Czech, Romanian, Macedonian, Slovenian, Hungarian, Turkish, Korean, Vietnamese, Thai, Serbian, Malaysian, Danish, Bulgarian |
| Languages Quick Start Guide | German, English, French, Spanish, Italian, Portuguese, Polish, Indonesian, Russian, Chinese, Japanese, Dutch, Swedish, Norwegian, Czech, Romanian, Macedonian, Slovenian, Hungarian, Turkish, Korean, Vietnamese, Thai, Serbian, Malaysian, Danish, Bulgarian |
| Languages Full User Manual | German, English, Spanish, French, Italian, Portuguese, Chinese, Japanese |
| Dimensions | 422 x 195 x 323 mm |
| Weight | 4.5 kg |
