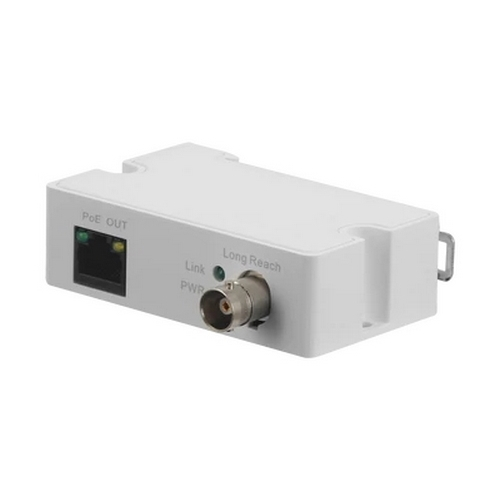

Lorex, ACVTR, Coaxial to Ethernet Converter for PoE Cameras for Trasmitter
Features:
- Use Coaxial-To-Ethernet Converters to upgrade your Analog Security System to IP without having to re-wire your current infrastructure with ethernet cables. By simply converting BNC connections to Ethernet, you can easily (and cost-effectively) add IP cameras and an NVR to transform your security system.
Save Cost and Time on Your System Upgrade
Avoid installation costs by easily adding the Coaxial to Ethernet Converter Transmitter (ACVTR) and Receiver (ACVRC) to the ends of your existing coaxial cables. Then simply use ethernet cables to connect to an NVR on the receiver end and an IP camera on the transmitter end. These converters support long-range power supply and data transmission to IP Cameras over the coaxial cables and a reliable connection up to 1,000m (3,280ft)* with 100Mbps and 10Mpbs transmission modes depending on the distance (400m/100Mbps, 1000m/10Mbps).
*The number of ACVRC (receiver) connected to the same switch/NVR cannot exceed 8. Performance and transmission speed are subject to coaxial cable quality and coupler quality.
Quick and Easy Mounting

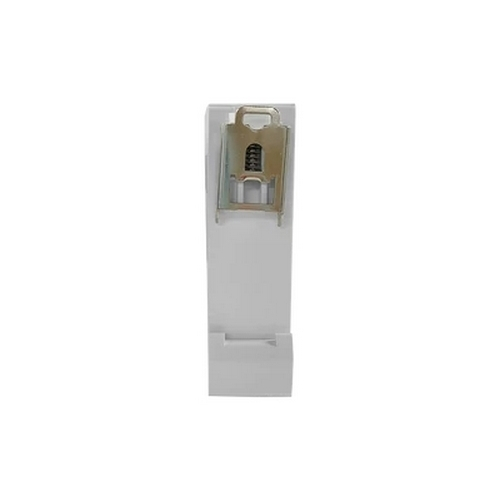

Use the DIN rail mount on the Transmitter/Receiver to easily attach to a DIN rail mount (not included)*. Simply lay the switch hook on the rail then press in to secure the buckle into the slide.
*Supports slide width of 28mm (1.1").
Compatible with Lorex Outdoor Junction Box
The small design of the Transmitter allows it to easily fit inside a Lorex camera Junction Box (ACJNCD4B and ACJNCD3B, sold separately). This allows you to conveniently hide your security camera cables and Transmitter from view and protect them from vandalism.
design of the Transmitter allows it to easily fit inside a Lorex camera Junction Box (ACJNCD4B and ACJNCD3B, sold separately). This allows you to conveniently hide your security camera cables and Transmitter from view and protect them from vandalism.
Supports PoE and ePoE Cameras
The Coaxial to Ethernet Converter is compatible with full range of wired IP security cameras, both PoE and ePoE. This includes Nocturnal 4 Series and Smart Security Lighting IP cameras.
Maximum Length of Coaxial Cable Reference Table
Note 1:
*RG59, 95% Braid, 20AWG(Solid) cable
The following NVR or PoE switches had been verified compatible with:NVRs: N845 Series, N844 Series, N843 Series, N842 Series, N864 Series, N863 Series, N862 Series, N883 Series, N882 Series, N881 Series, NR616X4TPoE Switches: ACCLPS263B, AEX8
