Buy Lovejoy 68514455552, LC110 LC Type Hub with Keyway - Imperial Bore

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Lovejoy, 68514455552, LC110 LC Type Hub with Keyway - Imperial Bore, 1 in, 3/16 x 3/32 in

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Hub Style	1
Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	3.05 lb
Weight (Complete Coupling w/ Min. Bore)	6.60 lb
Weight (Complete Coupling w/ Max. Bore)	5.00 lb
Bore Size	1 in
Coupling Size	LC110

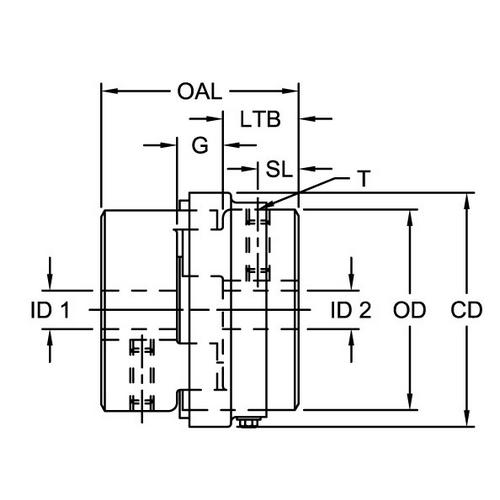

Thread (Dimension T)	3/8-16
Keyway Size (W x D)	3/16 x 3/32 in
Length thru Bore	1.690 in (42.93 mm)
Overall Length	4.25 in (107.95 mm)
Min. Bore	0.625 in (16.00 mm)
Max. Bore	1.620 in (41 mm)
Hub Length	2.56 in (65.02 mm)
Dimension CD	3.810 in (96.77 mm)
Dimension G	0.870 in (22.10 mm)
Outside Diameter	3.31 in (84.07 mm)
Dimension SL	0.750 in (19.05 mm)
Cubic inches	28.04762 in3
Nominal Torque	792.00 in x lb
Max. Speed	5000 rpm
Moment of Inertia (Solid) WR2	8.993 lb-in2
Rated HP at 1000 rpm	1.26 kW
Rated HP at 1,200 rpm	15.12 hp
Rated HP at 1,800 rpm	23.00 hp
Rated HP at 3,600 rpm	45.36 hp

Hub Style	1
Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	3.05 lb
Weight (Complete Coupling w/ Min. Bore)	6.60 lb
Weight (Complete Coupling w/ Max. Bore)	5.00 lb
Bore Size	1 in
Coupling Size	LC110
Thread (Dimension T)	3/8-16
Keyway Size (W x D)	3/16 x 3/32 in
Length thru Bore	1.690 in (42.93 mm)
Overall Length	4.25 in (107.95 mm)
Min. Bore	0.625 in (16.00 mm)
Max. Bore	1.620 in (41 mm)
Hub Length	2.56 in (65.02 mm)
Dimension CD	3.810 in (96.77 mm)
Dimension G	0.870 in (22.10 mm)
Outside Diameter	3.31 in (84.07 mm)
Dimension SL	0.750 in (19.05 mm)
Cubic inches	28.04762 in3
Nominal Torque	792.00 in x lb
Max. Speed	5000 rpm
Moment of Inertia (Solid) WR2	8.993 lb-in2
Rated HP at 1000 rpm	1.26 kW
Rated HP at 1,200 rpm	15.12 hp
Rated HP at 1,800 rpm	23.00 hp
Rated HP at 3,600 rpm	45.36 hp

Note: Please read description carefully. Do not base your order on the picture presented.
