Little Giant 588205 1-EUAA-MD Magnetic Drive Pump

Little Giant, 588205, 1-EUAA-MD 1/200 hp 150 gph Encapsulated Motor Magnetic Drive Pump

The Little Giant 1-EUAA-MD series features leakproof, seal-less magnetic drives and are designed for in-line or submersible use. Volute and magnet housing are glass-filled polypropylene for excellent chemical resistance. Impeller is glass-filled polypropylene and ceramagnet "A" (barium ferrite). Shaft is ceramic and thrust washers are Rulon "J" (Teflon® ) for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.

Features:

• 1/200 hp encapsulated motor
• Glass-filled polypropylene magnet housing
• Glass-filled polypropylene volute
• 1.1 specific gravity
• Nitrile O-ring
• PTFE thrust washers
• Ceramic shaft
• cCSAus listed for fresh and salt water

Application:

• Circulation of mildly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other mildly corrosive chemicals and solutions that are compatible with the pump's material of construction

Construction:

• Volute - Glass-filled polypropylene
• Magnet Housing - Glass-filled polypropylene
• Impeller - Glass-filled polypropylene & ceramagnet "A" (barium ferrite)
• Shaft - Ceramic
• Thrust Washers - Rulon "J" (Teflon®)
• O-Ring - Nitrile
• Motor Housing - Polyester/Polyethylene/
• Epoxy/PVC

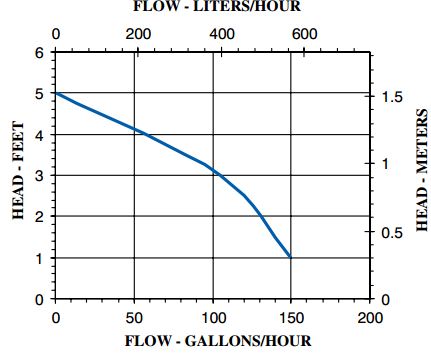

Performance Data:
