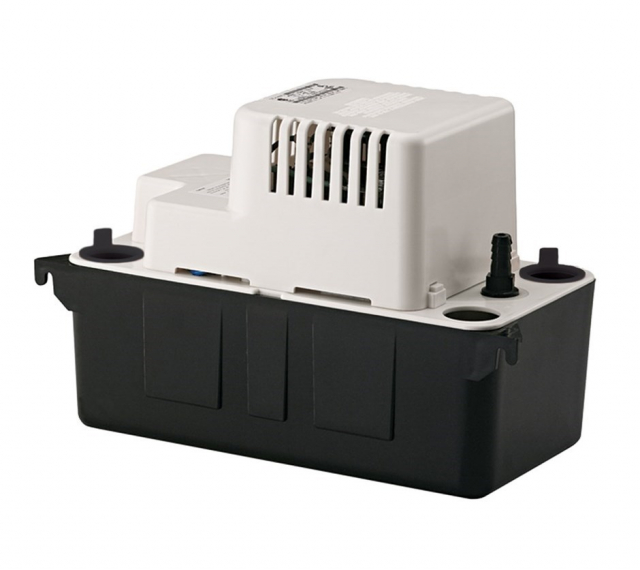

Little Giant 554411 VCMA-15ULT Large Tank Pump

Little Giant, 554411, VCMA-15ULT 1/50 hp 65 gph High Performance Large Tank Pump with Tubing & 6 ft. Cord, 115V

Features:

• 1/2 gallon collection tank
• Vertical centrifugal pump design
• Automatic start and stop operation
• NO and NC operation (set to NO from factory for equipment shut down connection)
• Models equipped with safety overflow switch include two 5" switch lead wires
• 3/8" O.D. barbed discharge adapter with built-in check valve
• Three 1-1/8" diameter inlet openings (two fitted with removable cap plug)
• Thermally protected, fan cooled motor
• Built-in wall mount tabs on tank
• Removable pump float locking tab for safety during transportation (remove at time of installation)
• Maximum water temperature: 140 °F
• 6 ft, 3-conductor cable with grounded 3-prong plug

Construction:

• Motor - 1/50 hp
• Discharge - 3/8" OD barbed
• Housing/tank cover - ABS
• Motor cover - ABS
• Volute - ABS
• Tank - ABS
• Impeller - Glass filled polypropylene
• Check valve - Acetal

Applications:

• Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment

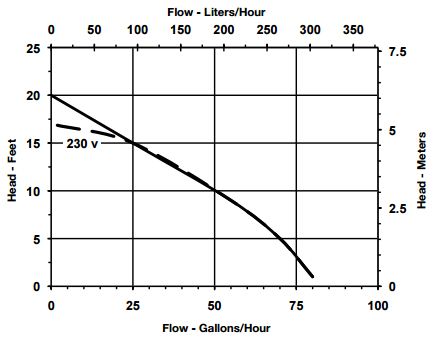

Performance Data:
