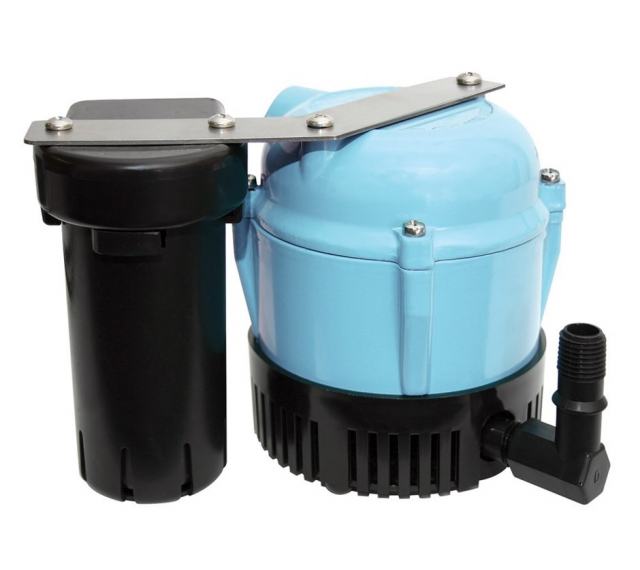

Little Giant 550532 1-ABS Condensate Removal Pump

Little Giant, 550532, 1-ABS 1/15 hp 205 gph Oil Filled Condensate Removal Pump with 11 ft. Cord, 230V - 50/60Hz

Includes:

• 90° 1/4” MNPT adapter (suitable for 1/2” I.D. (25 mm) vinyl tubing)
• 11' cord without plug
• Removable inlet filter screen

Features:

• Permanently lubricated motor bearings requires no maintenance during life of pump
• Oil-filled to maximize heat dissipation
• Epoxy-coated cast aluminum pump housing
• Automatic on-off operation
• Easy to remove float housing for servicing
• Low on and off level; turns on at 44.5 mm and off at 31.75 mm; will operate in most standard condensate drain pans

Applications:

• Utilizing a sealed, submersible pump with sump-type pick-up, the 1-ABS offers low on and off levels and is ideal for in-pan placement for condensate removal. An integrated, unique float switch design assures reliability and security while providing easy access to the float for servicing.

Construction:

• Motor: 1/150 hp
• Housing: Epoxy-coated cast aluminum
• Cover: Epoxy-coated cast aluminum
• Volute: Nylon
• Impeller: Nylon
• Shaft Seal: Nitrile
• Screen: Polyethylene
• Switch Bracket: Stainless steel

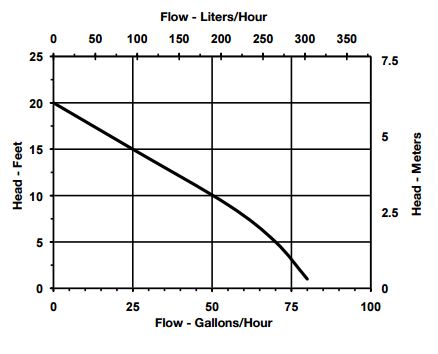

Performance:
