Little Giant 503203 3E-12NR 1/15 hp Dual Purpose Pump

Little Giant, 503203, 3E-12NR 1/15 hp 670 gph Direct Drive Dual Purpose Pump, 115V - 60Hz

Dual purpose oil-filled pump that may be used totally submersed or in-line (fed with pipe or hose). For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 670 GPH pump features a 1/2" MNPT discharge and 22.6' shut-off head capability.

Features:

• For submersed or in-line use
• Epoxy coated die-cast aluminum housing
• Oil-filled motor
• 22.6' maximum lift
• 200 watts
• 1/2" MNPT discharge
• Thermal overload protection

Construction:

• Motor — 1/15 HP Oil-filled
• Intermittent Liquid Temp. up to — 120°F
• Intake — 1/2" FNPT
• Discharge — 1/2" MNPT
• Housing — Epoxy coated cast aluminum
• Cover — Epoxy coated cast aluminum
• Volute — Nylon
• Impeller — Nylon
• Shaft Seal — Viton®
• Screen — Polypropylene

Applications:

• Submersed or in-line use, water transfer or recirculation, water displays, air conditioners and machine tool coolants

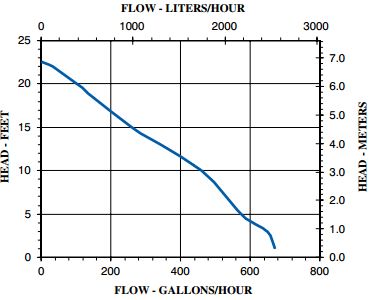

Performance:
