Julabo 9116417 Economy ED-17 Heating Circulator with Open Bath

Circulator Type: ED-17
  • Brand Julabo
  • Part # 9116417
  • Model # Economy
Availability
Discontinued
Quantity
Share:

Options and Related Products

Circulator Type:
Circulator Type: ED-17

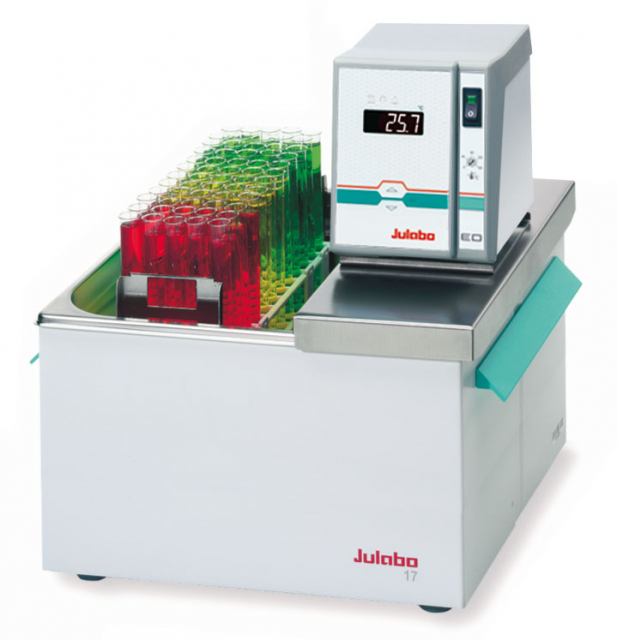

Open Heating Bath Circulator ED-17

Basic models for routine and standard applications

JULABO bath circulators for highly precise temperature control of objects in the circulator bath. The circulator is mounted onto a bridge and can be easily detached. A variety of bath inserts for laboratory glassware, bath covers, and stainless steel adjustable floors are available as accessories.

Features:

  • Bright LED temperature display, resolution 0.1 C
  • Keypad for setpoint, switches automatically to the actual value
  • PID1 temperature control
  • Adjustable high temperature cut-out / dry-running protection
  • 3-key operation for easy setpoint adjustment
  • PID Temperature control with set control parameters, temperature stability +/-0.02to+/-0.2 C
  • Classification I (NFL) according to DIN 12876-1
  • 'AbsoluteTemperatureCalibration' for manual compensation of a temperature difference, 1-point calibration
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
Model seriesEconomy
CategoryOpen Heating Bath Circulators
Working temperature range+20 to +100 C
Temperature stability+/-0.03 C
Setting / display resolution0.1 C
Temperature DisplayLED
Heating capacity (kW)1
Pump capacity flow rate (l/min)15
Pump capacity flow pressure (psi)5.1
Bath opening / bath depth (W x L / D inch)7.1 x 11.8 / 7.9
Filling volume (liters)17
Ambient temperature5to40 C
Dimensions W x L x H (inch)15.4 x 13 x16.5
Weight (LBS)22.1
Classification according to DIN12876-1Classification I (NFL)
Cooling coiloptional
Bath tankStainless steel
Bath coveroptional
Power requirement V / Hz / A115/60/9 Additional voltage versions available
Product Details
Model seriesEconomy
CategoryOpen Heating Bath Circulators
Working temperature range+20 to +100 C
Temperature stability+/-0.03 C
Setting / display resolution0.1 C
Temperature DisplayLED
Heating capacity (kW)1
Pump capacity flow rate (l/min)15
Pump capacity flow pressure (psi)5.1
Bath opening / bath depth (W x L / D inch)7.1 x 11.8 / 7.9
Filling volume (liters)17
Ambient temperature5to40 C
Dimensions W x L x H (inch)15.4 x 13 x16.5
Weight (LBS)22.1
Classification according to DIN12876-1Classification I (NFL)
Cooling coiloptional
Bath tankStainless steel
Bath coveroptional
Power requirement V / Hz / A115/60/9 Additional voltage versions available
Optional Accessories

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
