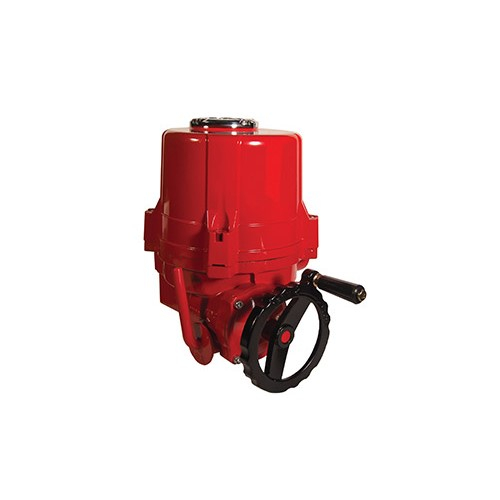

Jomar, AE-880, Double Acting Electric Actuator, Nema 4x, Manual Override.

Features:

Hard anodized aluminum hosing with external powder coating for severe duty applications
Enclosure: IP67, NEMA4 and 4X, O-ring sealed
ISO 5211 mounting
90° operation
Adjustable mechanical stops to prevent over travel
Position indicator
De-clutchable manual override standard
120V / 1Ph / 60Hz
Thermally protected induction motor
Double worm gearing, no break required
Spring loaded terminal block for ease in wiring

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Torque (in-lbs)	880
Output Square	0.67
ISO 5211 Mounting	F07
IEC Duty Cycle (S2)	Max 20 min
IEC Duty Cycle (S4)	50%
Operating Time, 90° at 120V (secs)	18
Rated current at 120V (Amp.) (Full Load/ Locked Rotor)	1.10/1.35
Motor Insulation Class	F
Limit Switches	2 - 1 ea for Open & Close (10A, 250VAC)
Auxiliary Limit Switches	2 - 12 - 1 ea for Open & Close (10A, 250VAC)
Cable Entry	2 - 3/4" NPT
Internal Htr	Yes - 5W
Temperature Range	-4° F to 158° F
Torque OL Protection	No

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Torque (in-lbs)	880
Output Square	0.67
ISO 5211 Mounting	F07
IEC Duty Cycle (S2)	Max 20 min
IEC Duty Cycle (S4)	50%
Operating Time, 90° at 120V (secs)	18
Rated current at 120V (Amp.) (Full Load/ Locked Rotor)	1.10/1.35
Motor Insulation Class	F
Limit Switches	2 - 1 ea for Open & Close (10A, 250VAC)
Auxiliary Limit Switches	2 - 12 - 1 ea for Open & Close (10A, 250VAC)
Cable Entry	2 - 3/4" NPT
Internal Htr	Yes - 5W
Temperature Range	-4° F to 158° F
Torque OL Protection	No
