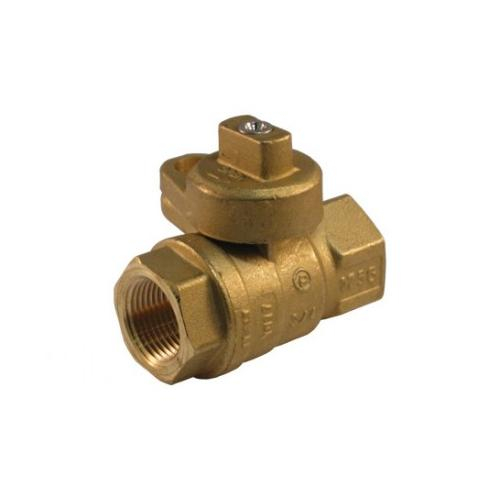

Buy Jomar 240-006P, 175-LWN Painted Lockwing Utility Gas Ball Valve 1-1/4 - Mega Depot

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Size:: Size: 1-1/4"
Finish:: Finish: Painted

Features:

Tamper resistant lockwing cap
2 Viton o-rings
Full port design to accommodate industry leading stop changers
Lockwing accommodates standard barrel locks
Maintenance free design
100% leak tested

Approvals:

CSA Certified
CGA 3.16 (125G)
ANSI B16.33 (125G)
Meets or exceeds applicable part of DOT 192
MSS SP-110

Pressure Rating:

175 PSIG
Temp range: -40°F to 300°F

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Size	1-1/4"
A	3.82
B	2.46
C	1.93
D	1.23
E	1.50
Body	Brass - CW617N
End Connection	Brass - CW617N
Ball	Chrome Plated Brass - CW617N
Seat (2)	Hostaflon TFM 1600
Stem	Brass - CW614N
Packing	Buna-N
Stem O-ring (2)	Viton
Packing Gland	Brass - CW614N
Lockwing Cap	Brass - CW617N
Screw	304 Stainless Steel

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Size	1-1/4"
A	3.82
B	2.46
C	1.93
D	1.23
E	1.50
Body	Brass - CW617N
End Connection	Brass - CW617N
Ball	Chrome Plated Brass - CW617N
Seat (2)	Hostaflon TFM 1600
Stem	Brass - CW614N
Packing	Buna-N
Stem O-ring (2)	Viton
Packing Gland	Brass - CW614N
Lockwing Cap	Brass - CW617N
Screw	304 Stainless Steel

Note: Please read description carefully. Do not base your order on the picture presented.
