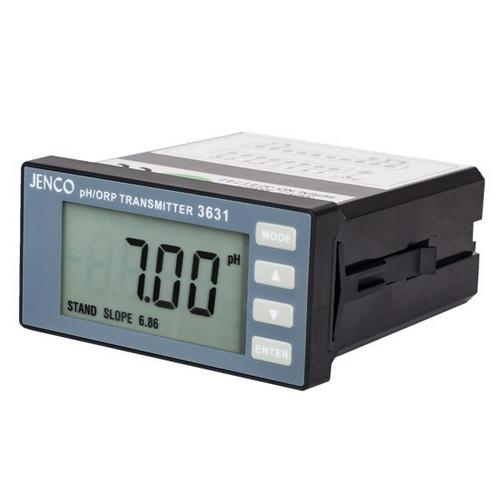

Jenco Instruments 3631 Industrial pH/ORP Transmitter, LCD Display

( 1 review )
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Jenco Instruments, 3631, Industrial pH/ORP Transmitter, LCD Display, 1/8 Din Panel Mount

Features:

  • Easy to install 1/8 DIN plastic casing.
  • Clear LCD displays pH, mV or temperature with backlight.
  • Universal power supply input from 100-240VAC.
  • Automatic buffer recognition of US and NIST buffer sets. Calibrated data is stored in memory and ready to for use on power up.
  • Automatic or manual temperature compensation.
  • Displays absolute and relative ORP.
  • Isolated and reversible 4-20mA current output for pH or mV allows it to be used as a proportional output.
  • RoHs compliant.

Menu driven, sealed, backlit, pH/mV monitor/transmitter with an isolated and reversible 4-20mA current output for pH and mV. Tinned lead connectors. 1/8 DIN, RoHS compliant, backlit, panel mount pH and temperature transmitter with isolated and reversible 4-20 mA current output for pH or mV. Extremely price competitive.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
pH Range-2.00 to 16.00 pH
pH Resolution0.01 pH
pH Accuracy± 0.1 % ±1 digit
ORP Range-1999.9 to 1999.9 mV
ORP Resolution1 mV
ORP Accuracy± 0.1 % ±1 digit
Temperature Range-10.0 to 120.0 °C
Temperature Resolution0.1 °C
Temperature Accuracy± 0.3 °C
pH buffer recognitionUS (4.01,7.00,10.01) or NIST (4.00,6.86,9.18) user selectable
pH Electrode Offset Recognition± 100 mV at pH 7.00 / -91.7 mV to 108.3 mV at pH 6.86
pH Electrode Slope Recognition±30% at pH 4.00, 4.01, 9.18 or 10.01
Temp CompensatonAuto / manual -10.0 to 120.0 °C (Thermistor, 10K ohm / PT-1000)
Input impedance>1013 ohms
Input SelectUser selectable pH or ORP
Current Output Range4 to 20 mA (isolated)
ScaleLiner
Maximum Load500 ohm
Isolation Voltage500 VDC
DisplayLCD with backlighting
Power100 to 240 VAC at 50/60 Hz
Ambient Temperature RangeFrom 0 to 50 °C
Case1/8 DIN case, 90 mm. depth
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
pH Range-2.00 to 16.00 pH
pH Resolution0.01 pH
pH Accuracy± 0.1 % ±1 digit
ORP Range-1999.9 to 1999.9 mV
ORP Resolution1 mV
ORP Accuracy± 0.1 % ±1 digit
Temperature Range-10.0 to 120.0 °C
Temperature Resolution0.1 °C
Temperature Accuracy± 0.3 °C
pH buffer recognitionUS (4.01,7.00,10.01) or NIST (4.00,6.86,9.18) user selectable
pH Electrode Offset Recognition± 100 mV at pH 7.00 / -91.7 mV to 108.3 mV at pH 6.86
pH Electrode Slope Recognition±30% at pH 4.00, 4.01, 9.18 or 10.01
Temp CompensatonAuto / manual -10.0 to 120.0 °C (Thermistor, 10K ohm / PT-1000)
Input impedance>1013 ohms
Input SelectUser selectable pH or ORP
Current Output Range4 to 20 mA (isolated)
ScaleLiner
Maximum Load500 ohm
Isolation Voltage500 VDC
DisplayLCD with backlighting
Power100 to 240 VAC at 50/60 Hz
Ambient Temperature RangeFrom 0 to 50 °C
Case1/8 DIN case, 90 mm. depth
