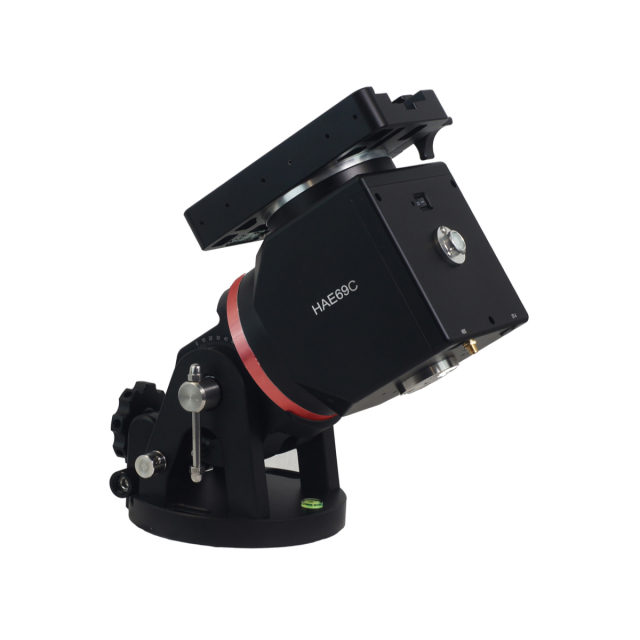

iOptron, HE694C, Dual AZ/EQ SWG Mount with High Precision Encoder
HE694C Includes Only:
- Telescope mount with USB connection
- iPolarTM electronics polar scope
- High precision optical encoder on RA axle (for EC version)
- Handset with OLED display - Go2Nova®8411 (optional for some model)
- 6P6C hand controller cable with HC
- AC adapter - 100-240V, 12V 6A DC output for mount (for indoor use only)
- Aluminum carrying case
- Optional LiteRoc tripod ,Tri-pier or Tri-pier 360A
- Optional external iGuider for autoguiding
- Optional counterweight shaft and counterweight
Features:
- Advanced strain wave gear system technology
- Payload capacity of 31 kg (69 lbs) with the mount weight of 8.6 kg (19 lbs, include dovetail saddle)
- High precision encoder with realtime PEC (RPEC)
- CNC machined
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
- 270 second gear period
- Go2Nova® handset with OLED for better user experiences, especially at extreme temperatures (optional for some models)
- iPolar electronic polar scope for easy and accurate polar alignment (optional)
- Dual saddle (Vixen and Losmandy-D styles)
- Built in zero position search and locator
- Power down position and location memory
- Integrated ST-4 autoguiding port

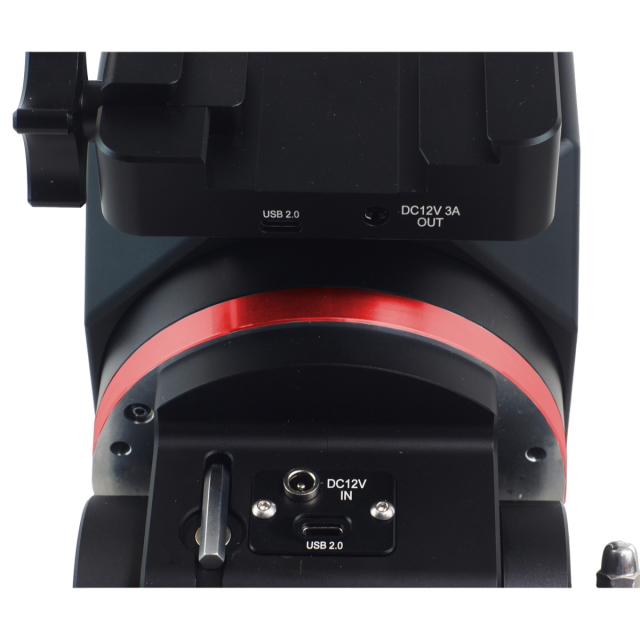

- USB port (on both mount base and dovetail saddle) for firmware upgrade and computer control
- No cable drags
- Built-in Wi-Fi for mount control
HAE69 mounts are now without the iMate (on-board computer).
These lightweight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 20 lbs with a payload capability 69 lbs, without needing a cumbersome counterweight or shaft. Applying iOptron's multi-decade experience creating precision mounts, the HAE69 makes this vision possible.
Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE69s deliver unparalleled weight to payload efficiency. Its black anodized, all metal CNC machined body is appealing to the eye and is a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power-down memory allow the mount to safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).
HAE69C dual SWG Alt-az/ Eq mounts now have an internal main board and no longer requires use with a handset. The mount has USB ports on both the mount base and saddle that connect directly to the main board for mount control and firmware upgrade. It also features a built-in Wi-Fi for connection. .
The optional Go2Nova® handset with OLED will provide a better user experiences, especially at extreme temperatures.
The HAE69C EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image "sans" guiding.
The Mount Comes with Two Options:
- HE694CH: HAE69C EC with 8411 handset
- HE694C: HAE69C EC (no handset)
For more information, please see Product Manual
