Options and Related Products

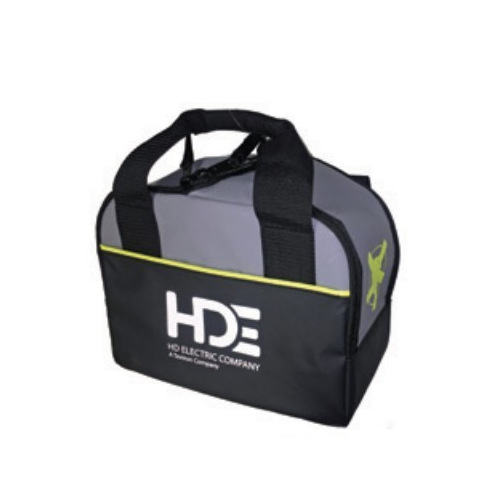

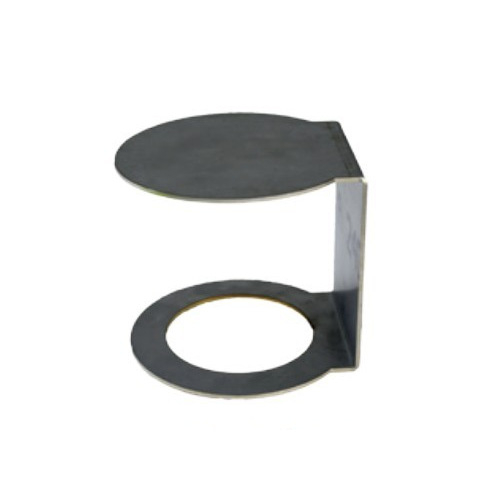

Options:: Options: (6) WM-01, (6) WM-CB1 Cone Mount Brackets and WM-BGS Small Storage Bag

HDE, WM-06C, Kit, Includes (6) WM-01, (6) WM-CB1 Cone Mount Brackets and WM-BGS Small Storage Bag

Features

The Watchman Detector can be activated to visually alert to the presence of an electrical field and can also alert crews that they no longer have active power in the area.
Spinning LED lights indicate an electric field and a nearby energized conductor.
Power button serves dual function, press once for on/off function, hold down for self-test to verify battery power and proper functioning of Detector.
Once turned on, the Watchman Detector provides a “heartbeat” pattern to indicate it is actively checking for the presence of high voltage electric fields.
Powerful neodymium magnets allow the detector to be mounted to accessory brackets or any magnetic surface.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Sensitivity	The Watchman Detector will only detect 50/60 Hz AC voltage. Do not use below 2400 Volts.
Typical warning distance	7 feet (2.13m) from a 4kV AC conductor. For more details, refer to warning distances in the instruction manual.
Operating frequency	50Hz/60Hz
Batteries	(3) AAA ANSI 24A, IEC LR03 or AAA lithium ANSI 24-LF, IEC-FR03. Life 2 years in storage, 1,000 hours standby heartbeat mode, 10 hours continuous voltage indication.
Weight with battery	8 oz. (227g.)
Dimensions	3.8 in. (9.7cm.) diameter x 1.4 in. (3.6cm.) high
Voltage range	2400VAC and above.
Enclosure material	ABS UL 94-HB
Printed circuit boards	FR-4 UL94V-0

Sensitivity	The Watchman Detector will only detect 50/60 Hz AC voltage. Do not use below 2400 Volts.
Typical warning distance	7 feet (2.13m) from a 4kV AC conductor. For more details, refer to warning distances in the instruction manual.
Operating frequency	50Hz/60Hz
Batteries	(3) AAA ANSI 24A, IEC LR03 or AAA lithium ANSI 24-LF, IEC-FR03. Life 2 years in storage, 1,000 hours standby heartbeat mode, 10 hours continuous voltage indication.
Weight with battery	8 oz. (227g.)
Dimensions	3.8 in. (9.7cm.) diameter x 1.4 in. (3.6cm.) high
Voltage range	2400VAC and above.
Enclosure material	ABS UL 94-HB
Printed circuit boards	FR-4 UL94V-0

Note: Please read description carefully. Do not base your order on the picture presented.
