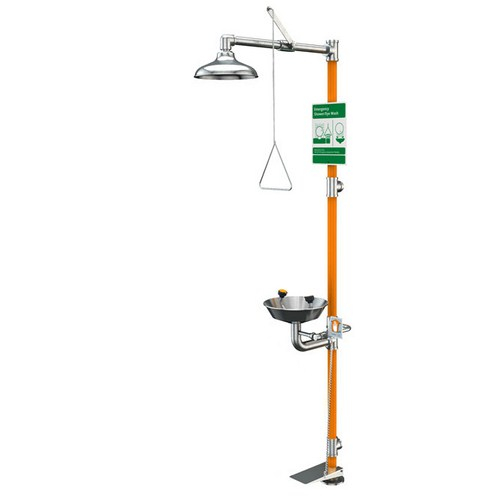

Guardian Equipment G1991HFC Safety Station, Eyewash, Hand/Foot

Guardian Equipment, G1991HFC, Safety Station with Eyewash, Hand and Foot Control, All-Stainless Steel

Features:

• Shower Head: 10" diameter stainless steel with 20 GPM flow control.
• Shower Valve: 1" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and PTFE seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
• Spray Head Assembly: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from water flow.

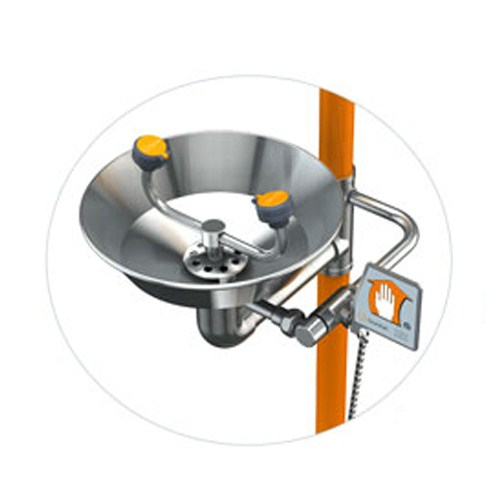

• Eyewash Bowl: 11-1/8" diameter stainless steel.
• Eyewash Valve: 1/2" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and PTFE seals. Eyewash is activated by flag handle or foot treadle. Unit remains in operation until handle is returned to closed position.
• Pipe and fittings: Schedule 40 Type 304 brushed stainless steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
• Supply: 1-1/4" NPT female top or side inlet.
• Waste: 1-1/4" NPT female outlet.
• Sign: ANSI-compliant identification sign.
• Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment.

Application: All-stainless steel combination eyewash and shower safety station. Stainless steel construction is ideal for highly corrosive environments and clean room applications. Eyewash is activated by flag handle or foot treadle. Two GS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes
