Buy Greenfield Threading 330213, FTGP GT/VTD H7 GP Plug Form Tap - Mega Depot

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Diameter:: Diameter: 0.3750"
Tool Size:: Tool Size: 3/8-24 UNF
Tap Limit:: Tap Limit: H7
Number of Flutes:: Number of Flutes: 0

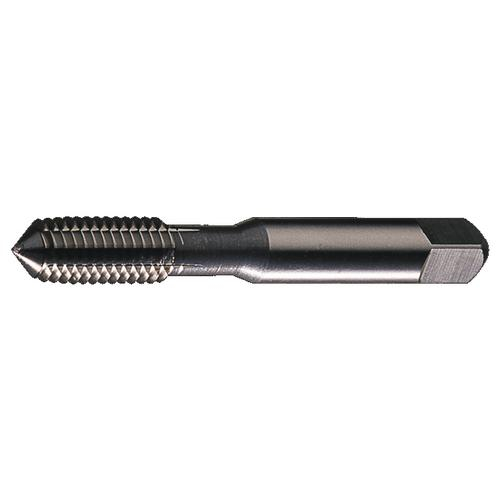

Greenfield Threading, 330213, FTGP GT/VTD 3/8-24NF FTGP H7 GP Plug Form Tap

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
Brand Name	Greenfield Threading
Item #	330213
Style #	FTGP
Set	No
Dimensions
Diameter	0.3750"
Overall Lenght	2.9375"
Overall Lehgth (Metric)	74.61mm
Tap Neck Length	1.2500"
Tool Size	3/8-24 UNF
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNF
Thread Length	0.7500"
Thread Length (Metric)	19.05mm
Thread Pitch	24
Thread Size	3/8"
Thread Tolerance	2B-3B
Specification
Flute Type	Straight
Hand of Cut	Right
Helix Angle	52°
Material	HSS
Measurement System	Imperial
Number of Flutes	0
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H7
Tap Spiral Point	No
Tap Style	Thread Forming Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Shank Specification
Shank Configuration	Straight w/ Square
Shank End	Square
Shank Size	0.3810"
Shank Size (Metric)	9.68mm
Shank Square Length	0.4375"
Shank Square Length (Metric)	11.11mm
Shank Square Width	0.2860"
Shank Square Width (Metric)	7.26mm
Appliaction
Depth of Cut	2xD
Material Application	N: Non-ferrous Metal, P: Steel
Operation Type	Bottoming Hole

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

General
Brand Name	Greenfield Threading
Item #	330213
Style #	FTGP
Set	No
Dimensions
Diameter	0.3750"
Overall Lenght	2.9375"
Overall Lehgth (Metric)	74.61mm
Tap Neck Length	1.2500"
Tool Size	3/8-24 UNF
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNF
Thread Length	0.7500"
Thread Length (Metric)	19.05mm
Thread Pitch	24
Thread Size	3/8"
Thread Tolerance	2B-3B
Specification
Flute Type	Straight
Hand of Cut	Right
Helix Angle	52°
Material	HSS
Measurement System	Imperial
Number of Flutes	0
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H7
Tap Spiral Point	No
Tap Style	Thread Forming Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Shank Specification
Shank Configuration	Straight w/ Square
Shank End	Square
Shank Size	0.3810"
Shank Size (Metric)	9.68mm
Shank Square Length	0.4375"
Shank Square Length (Metric)	11.11mm
Shank Square Width	0.2860"
Shank Square Width (Metric)	7.26mm
Appliaction
Depth of Cut	2xD
Material Application	N: Non-ferrous Metal, P: Steel
Operation Type	Bottoming Hole

Note: Please read description carefully. Do not base your order on the picture presented.
