Options and Related Products

Chamfer:: Chamfer: Plug
Size:: Size: 1/4-20NC
Flutes:: Flutes: 2

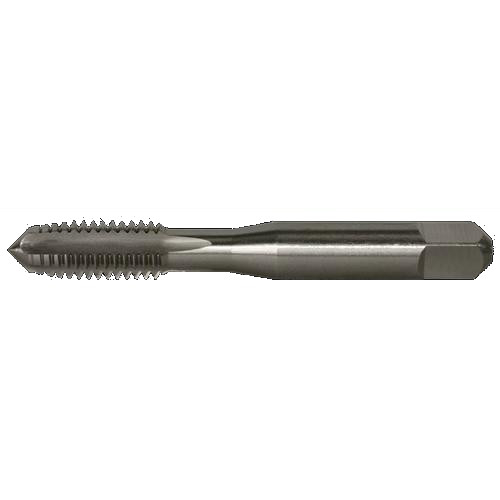

Greenfield Threading, 326004, GT/VTD Straight Type Plug, 1/4-20NC, Flutes 2

Features:

Flute Type - Straight
Hand of Cut - Right
Material - HSS
Measurement System - Imperial
Number of Flutes - 2
Surface Condition - Right
Tap Blank Construction - USCTI Table 302A
Tap Chamfer - Plug
Tap Construction - Standard
Tap Ground Threads - Yes
Tap Interrupted Thread - No
Tap Limit - H3
Tap Spiral Point - No
Tap Style - Straight Flute Hand Tap
Tap Truncated Threads - No
Tap Type - Hand Tap

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Diameter	0.25"
Overall Length	2.5"
Overall Length (Metric)	63.50mm
Tap Neck Length	0.39"
Tool Size	1/4-20 UNC
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.63"
Thread Length (Metric)	16mm
Thread Pitch	20
Thread Size	1/4"
Thread Tolerance	2B
Flute Type	Straight
Surface Condition	Right
Tap Limit	H3
Tap Construction	Standard
Material	HSS
Shank Configuration	Straight w/ Square
Shank End	Square
Shank Size	0.255"
Shank Size (Metric)	6.48mm
Shank Square Length	0.3125"
Shank Square Length (Metric)	7.94mm
Shank Square Width	0.191"
Shank Square Width (Metric)	4.85mm

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Diameter	0.25"
Overall Length	2.5"
Overall Length (Metric)	63.50mm
Tap Neck Length	0.39"
Tool Size	1/4-20 UNC
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.63"
Thread Length (Metric)	16mm
Thread Pitch	20
Thread Size	1/4"
Thread Tolerance	2B
Flute Type	Straight
Surface Condition	Right
Tap Limit	H3
Tap Construction	Standard
Material	HSS
Shank Configuration	Straight w/ Square
Shank End	Square
Shank Size	0.255"
Shank Size (Metric)	6.48mm
Shank Square Length	0.3125"
Shank Square Length (Metric)	7.94mm
Shank Square Width	0.191"
Shank Square Width (Metric)	4.85mm
