Options and Related Products

Tap Chamfer:: Tap Chamfer: Plug
Thread Size/Pitch:: Thread Size/Pitch: M5 x 0.8

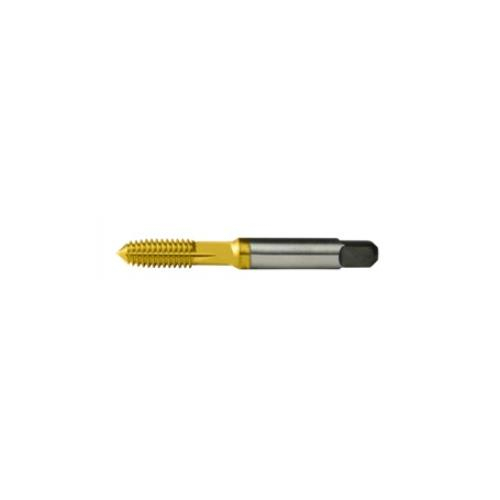

Greenfield Threading, 291123, M5 x 0.8 HS G D7 4L Plug CNC Forming Tap TiN

Application:

Depth of Cut 2 x D
Material Application N: Non-ferrous Metal, P: Steel
Operation Type Blind Hole

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Diameter	0.1969"
Overall Length	2.3750"
Overall Length (Metric)	60.32mm
Tap Neck Length	0.8750"
Tool Size	M5 x 0.8
Thread Creation	Thread Forming
Thread Form	Metric
Thread Length	0.5000"
Thread Length (Metric)	12.70mm
Thread Pitch	0.8
Thread Size	M5
Thread Tolerance	6H
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Metric
Number of Flutes	0
Surface Condition	TiN
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	D7
Tap Spiral Point	No
Tap Style	Thread Forming Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Shank Configuration	Straight w/ Square
Shank End	Square
Shank Size	0.1940"
Shank Size (Metric)	4.93mm
Shank Square Length	0.2500"
Shank Square Length (Metric)	6.35mm
Shank Square Width	0.1520"
Shank Square Width (Metric)	3.86mm

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Diameter	0.1969"
Overall Length	2.3750"
Overall Length (Metric)	60.32mm
Tap Neck Length	0.8750"
Tool Size	M5 x 0.8
Thread Creation	Thread Forming
Thread Form	Metric
Thread Length	0.5000"
Thread Length (Metric)	12.70mm
Thread Pitch	0.8
Thread Size	M5
Thread Tolerance	6H
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Metric
Number of Flutes	0
Surface Condition	TiN
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	D7
Tap Spiral Point	No
Tap Style	Thread Forming Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Shank Configuration	Straight w/ Square
Shank End	Square
Shank Size	0.1940"
Shank Size (Metric)	4.93mm
Shank Square Length	0.2500"
Shank Square Length (Metric)	6.35mm
Shank Square Width	0.1520"
Shank Square Width (Metric)	3.86mm

Note: Please read description carefully. Do not base your order on the picture presented.
