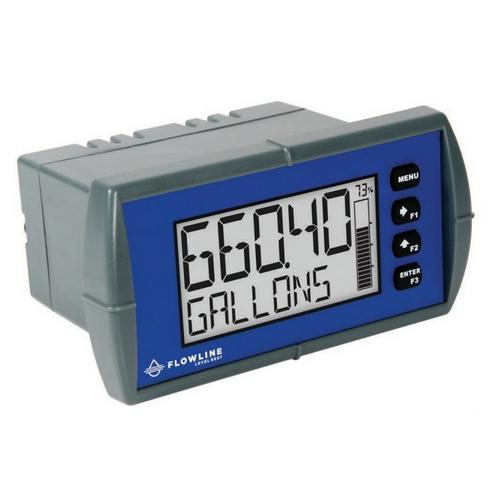

Flowline LI23-1201 DataLoop General Purpose Level Indicator

Type: Level Indicator with 2 Relays
  • Brand Flowline
  • Part # LI23-1201
  • Model # DataLoop
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Type:
Type: Level Indicator with 2 Relays

Flowline, LI23-1201, DataLoop General Purpose Level Indicator with 2 Relays

The general purpose loop powered level indicator displays engineering units connected in series with one 4-20 mA level transmitter.

Features:

  • Easy configuration via the push button display module
  • LCD main display with secondary unit and bar graph display
  • DIN enclosure with NEMA 4X faceplate and shallow case
  • Linear, square root and programmable exponent functions
  • Non-volatile memory with security password protection
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
Display typeLCD, 5-digit top / 8-digit bottom
Display unitsEngineering
Display output-9999 to 99999 (top) / -9999999 to 999999999 (bottom)
Display height0.7” (17.8mm) top / 0.4” (10.2mm) bottom
Decimal pointFloating
BacklightLED / Red for Alarm
ConfigurationPush button
MemoryNon-volatile
Sensor input(1) 4-20 mA transmitter
Loop power12-30 VDC
Voltage drop1.5 VDC without backlight, 4.5 VDC with backlight
Process temp.F: -40° to 167°, C: -40° to 75°
Ambient temp.F: -40° to 185°, C: -40° to 85°
Enclosure type1/8 DIN, panel mount
Enclosure ratingNEMA 4X (IP65) faceplate
Enclosure mat’lPPE & PS blend
ClassificationGeneral purpose
ComplianceCE
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Display typeLCD, 5-digit top / 8-digit bottom
Display unitsEngineering
Display output-9999 to 99999 (top) / -9999999 to 999999999 (bottom)
Display height0.7” (17.8mm) top / 0.4” (10.2mm) bottom
Decimal pointFloating
BacklightLED / Red for Alarm
ConfigurationPush button
MemoryNon-volatile
Sensor input(1) 4-20 mA transmitter
Loop power12-30 VDC
Voltage drop1.5 VDC without backlight, 4.5 VDC with backlight
Process temp.F: -40° to 167°, C: -40° to 75°
Ambient temp.F: -40° to 185°, C: -40° to 85°
Enclosure type1/8 DIN, panel mount
Enclosure ratingNEMA 4X (IP65) faceplate
Enclosure mat’lPPE & PS blend
ClassificationGeneral purpose
ComplianceCE
