Flowline AU18-2134 Switch-Pro Relay PFA Compact Junction Box

Mount: Metric, Material: PFA
  • Brand Flowline
  • Part # AU18-2134
  • Model # Switch-Pro
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Mount:
Mount: Metric
Material:
Material: PFA

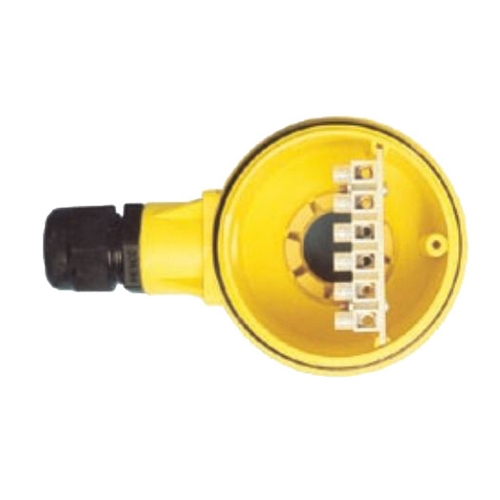

Flowline, AU18-2134, Switch-Pro 3/4" Metric Relay PFA Compact Junction Box with Ultrasonic SPST Sensor

Features:

  • Rugged polypropylene, Ryton or PFA sensor for corrosive liquid applications.
  • 60VA relay selectable NO or NC via power supply wiring polarity.
  • Polypropylene enclosure rated NEMA 4X with swivel base and terminal strip.
  • Offered in 2 sensing technologies for broad application coverage: ultrasonic & vibration.

Application:

Intended for side wall installation, the general purpose level switch package provides reliable liquid level detection with one 1A relay and a compact junction box for integral wiring termination. Available in two level sensor technologies, select the type and material based upon your application media. This liquid level switch package is widely applied in bulk storage and process tank level applications as a high level alarm or low level alarm.

Key Benefits:

  • Ideal for side wall tank mounting.
  • Switch output wires directly into a PLC/SCADA.
  • Can be installed outdoors.
  • Great for corrosive or coating liquids.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Accuracy:± 1mm in water
Repeatability:± 0.5mm in water
Supply Voltage:12-36 VDC
Consumption:25 mA maximum
Contact Type:SPST relay
Contact Rating:60 VA, 1A max.
Contact Output:Selectable NO / NC
Process Temp.:F: -40° to 176°, C: -40° to 80°
Ambient Temp.:F: -40° to 140°, C: -40° to 60°
Pressure:150 PSI (10 bar)
Enclosure Rating:NEMA 4X (IP65)
Enclosure Mat.:PP, UL94VO
Terminal Strip:6-pole, socket
Conduit Entrance:1/2" NPT
Wetted Material:PFA
Process Mount:3/4" Metric
Classification:General purpose
Compliance:CE, RoHS
Mount. Gasket:Viton
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Accuracy:± 1mm in water
Repeatability:± 0.5mm in water
Supply Voltage:12-36 VDC
Consumption:25 mA maximum
Contact Type:SPST relay
Contact Rating:60 VA, 1A max.
Contact Output:Selectable NO / NC
Process Temp.:F: -40° to 176°, C: -40° to 80°
Ambient Temp.:F: -40° to 140°, C: -40° to 60°
Pressure:150 PSI (10 bar)
Enclosure Rating:NEMA 4X (IP65)
Enclosure Mat.:PP, UL94VO
Terminal Strip:6-pole, socket
Conduit Entrance:1/2" NPT
Wetted Material:PFA
Process Mount:3/4" Metric
Classification:General purpose
Compliance:CE, RoHS
Mount. Gasket:Viton
Note

Note: Please read description carefully. Do not base your order on the picture presented.
