Flowline AG14-3624-E Thermo-Flo Compact Gas Flow Controller

Flowline, AG14-3624-E, Thermo-Flo 3/4" Metric 240VAC Compact Gas Flow Controller w/ Long PVDF Sensor

Features:

• Rugged Polypropylene-Ryton or PVDF sensor for corrosive liquids and gases.
• Fail-safe relay control of pumps or valves with 0-60 second delay.
• Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment.
• Optional strobe brings immediate attention to flow alarm conditions.
• Invert switch changes relay state from NO to NC without rewiring.

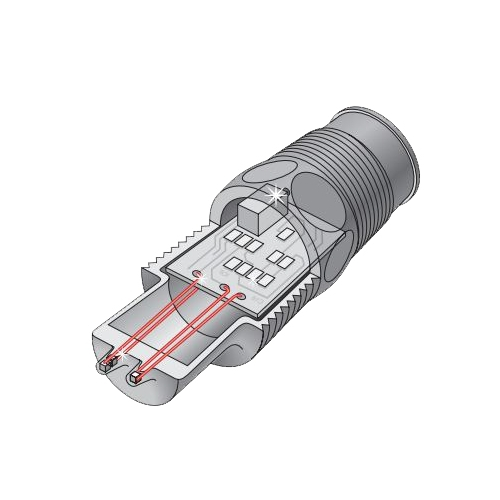

• Solid state sensor is not damaged by over-ranging flow velocities.

Application:

Offered in liquid and gas sensor types, the general purpose flow switch package provides reliable no or low-flow detection of relatively clean non-coating media with a 16A compact flow controller for pump or process protection. Liquid examples includes water and sulfuric acid. The optional flash alarm brings attention to low-flow alarm conditions. Available in Polypropylene-Ryton and PVDF, the short flow sensor is used in pipe or ducting from 1/2" to 1 1/2", and the long flow sensor is used in 2" and up. The flow switch set point may be adjusted from 0.04 to 3 fps in liquids, or 1 to 90 fps in gases for low-flow control. The flow sensor is best applied in applications with relatively constant temperature.

Includes:

• Thermo-Flo XT10 Liquid & Gas Flow Switch (Part #: GT10-5425).

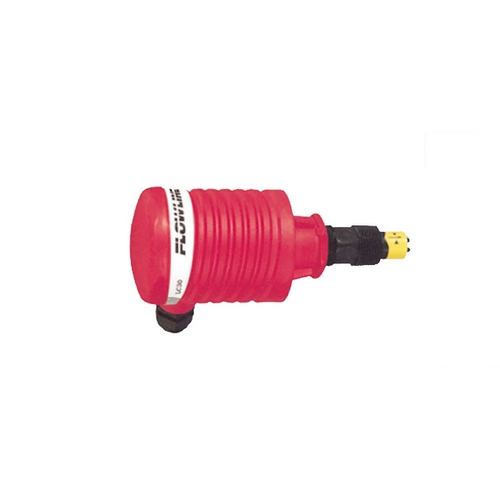

• Switch Pro Compact Relay Controller (Part #: LC10-1051).
