FLIR, T530-42-14-NIST, T530 320x240 Professional Thermal Imaging Camera w/ 42 deg. & 14 deg. Lens and NIST, -20 deg. C to 650 deg. C

The T530 is designed to support advanced thermographers and IR service consultants in the power generation, electrical distribution, and manufacturing industries by focusing on resolution, speed, and ergonomics. With the 180° rotating optical block, vibrant LCD display, and streamlined form factor, the T500-Series offers inspectors the necessary tools to support comprehensive inspections in challenging conditions, especially when equipment is obstructed from view or difficult to access.

Includes

Infrared camera
42° & 14° Lens
2 batteries
Battery charger
Hard transport case
Lanyards
Front lens cap
Power supplies
Printed documentation
SD card (8 GB)
Cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)

Features

180° rotating optical block and vivid 4” capacitive touch screen
Fast and precise laser-assisted autofocus
Laser distance and on-screen area measurement
Customizable work folders
Intelligent, interchangeable AutoCal™ lenses
Industry-leading FLIR 2-5-10 warranty

Maximize Efficiency, Safety, and Performance

Assess equipment and prevent component failure – safely and comfortably – from any vantage point

Reduce the strain of full-day inspections with 180° rotating optical block for imaging targets overhead or below

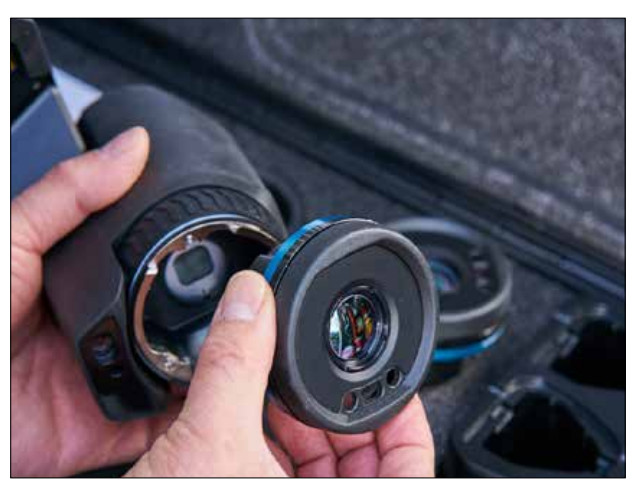

Share lenses (wide angle to telephoto) across your fleet of cameras thanks to AutoCal™ optics
Ensure crisp thermal imagery and spot-on temperature readings every time with laserassisted autofocus

Make Critical Decisions Quickly

Advanced imaging technology and superior sensitivity help you make the right call – fast

Get industry-leading image clarity from FLIR Vision Processing™, through the power of MSX®, UltraMax®, and proprietary adaptive filtering
Determine accessibility of components for repair at the touch of a button by activating on-screen laser distance measurement
See problems and make decisions easily thanks to scratch-resistant 4” LCD display that’s 33% brighter and 4x the resolution of comparable cameras

Designed to Make Your Work Easier

Get most out of your workday with rapid reporting features that help you organize findings in the field

Quickly access menus, folders, and settings using intuitive controls, including rapidresponse touchscreen and two programmable buttons
Allow customers to observe critical findings in real time through Wi-Fi streaming to the FLIR Tools app
Optimize workflows with streamlined reporting features, such as built-in voice annotation, text comments with auto-fill, and image sketch
Prepare precise documentation with embedded GPS locations, as well as measurement data from METERLiNK®-enabled FLIR clamps and multimeters

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

IR Resolution	320 x 240 (76,800 pixels)
UltraMax® Resolution	307,200 effective pixels
Object Temperature Range	-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F)
Digital Zoom	1-4x continuous
Common Features
Detector Type and Pitch	Uncooled microbolometer, 17 µm
Thermal Sensitivity/NETD	<30 mK @ 30°C (42° lens)
Spectral Range	7.5 - 14.0 µm
Image Frequency	30 Hz
Lens Identification	Automatic
F-Number	f/1.1 (42° lens), f/1.3 (24° lens), f/1.5 (14° lens)
Focus	Continuous with laser distance meter (LDM), oneshot LDM, one-shot contrast, manual
Minimum Focus Distance	42° lens - 0.15 m; 14° lens - 1.0 m
Macro Mode	24° lens option / 103 µm effective spotsize
Programmable Buttons	2
Image Presentation and Modes
Display	4”, 640 x 480 pixel touchscreen LCD with auto-rotation
Digital Camera	5 MP, with built-in LED photo/video lamp
Color Palettes	Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Image Modes	Infrared, visual, MSX®, Picture-in-Picture
Picture-in-Picture	Resizable and movable
UltraMax®	Quadruples pixel count; activated in menu and processed in FLIR Tools
Measurement and Analysis
Accuracy	±2°C (±3.6°F) or ±2% of reading
Spotmeter and Area	3 ea. in live mode
Measurement Presets	No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Laser Pointer	Yes
Laser Distance Meter	Yes; dedicated button
Annotations
Voice	60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
Text	Predefined list or touchscreen keyboard
Image Sketch	From touchscreen, on infrared image only
Distance, Area Measurement	Yes; calculates area inside measurement box in m2 or ft2
GPS	Automatic image tagging
METERLiNK®	Yes
Image Storage
Storage Media	Removable SD card
Image File Format	Standard JPEG with measurement data included
Time Lapse (Infrared)	10 sec to 24 hrs
Video Recording and Streaming
Radiometric IR Video	Real-time radiometric recording (.csq)
Non-Radiometric IR or Visual Video	H.264 to memory card
Radiometric IR Video Streaming	Yes, over UVC or Wi-Fi
Non-Radiometric IR Video Streaming	H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Communication Interfaces	USB 2.0, Bluetooth, Wi-Fi
Video Out	DisplayPort over USB Type-C
Additional Data
Battery Type	Li-ion battery, charged in camera or on separate charger
Battery Operating Time	Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Operating Temperature Range	–15°C to 50°C (5°F to 122°F)
Storage Temperature Range	–40°C to 70°C (-40°F to 158°F)
Shock/Vibration/ Encapsulation; Safety	25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6 / IP 54; EN/UL/CSA/PSE 60950-1
Weight/Dimensions w/o Lens	1.3 kg (2.9 lbs), 140 x 201 x 84 mm (5.5 x 7.9 x 3.3 in)
