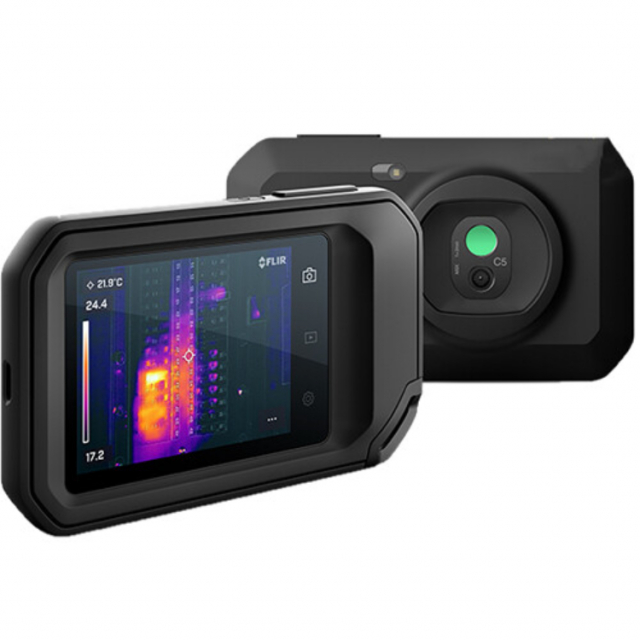

Buy Teledyne FLIR 89401-0202, C5 Compact Thermal Camera, 8.7 Hz, 5 MP

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

With the C5 in your pocket you'll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 x 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.

Features:

Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 x 120 true thermal imaging, and 1-Touch Level Span
Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
Take the pocket-portable C5 with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Accuracy	At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Digital Camera	5 MP
Image Modes	Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Storage Media	Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
Color Palettes	Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
FLIR Screen-EST Mode	No
Focus	Focus free
Gallery	Thumbnails and custom folder structure
Image Frequency	8.7 Hz
Image Modes	Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Minimum Focus Distance	Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
Spectral Range	8 to 14 µm
Accuracy	At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Camera size (L x W x H)	138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
Measurements correction	Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
Object Temperature Range	-20 to 400°C (-4 to 752°F)
Thermal Sensitivity	<70 mK
Touchscreen	Capacitive touch
Battery operating time	4 hours
Battery Type	Rechargeable built-in Lithium ion battery
Charging system	USB-C (1 A)
Charging Time	2 hours
External Power Operation	5 V, USB-C
Drop test	2 m (6.6 ft)
Encapsulation	Camera housing and lens: IP54 (IEC 60529)
Operating Temperature Range	-10 to 50°C (14 to 122°F)
Storage Temperature Range	-40 to 70°C (-40 to 158°F)
Tripod Mounting	UNC ¼"-20 (built-in)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Accuracy	At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Digital Camera	5 MP
Image Modes	Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Storage Media	Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
Color Palettes	Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
FLIR Screen-EST Mode	No
Focus	Focus free
Gallery	Thumbnails and custom folder structure
Image Frequency	8.7 Hz
Image Modes	Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Minimum Focus Distance	Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
Spectral Range	8 to 14 µm
Accuracy	At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Camera size (L x W x H)	138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
Measurements correction	Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
Object Temperature Range	-20 to 400°C (-4 to 752°F)
Thermal Sensitivity	<70 mK
Touchscreen	Capacitive touch
Battery operating time	4 hours
Battery Type	Rechargeable built-in Lithium ion battery
Charging system	USB-C (1 A)
Charging Time	2 hours
External Power Operation	5 V, USB-C
Drop test	2 m (6.6 ft)
Encapsulation	Camera housing and lens: IP54 (IEC 60529)
Operating Temperature Range	-10 to 50°C (14 to 122°F)
Storage Temperature Range	-40 to 70°C (-40 to 158°F)
Tripod Mounting	UNC ¼"-20 (built-in)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
