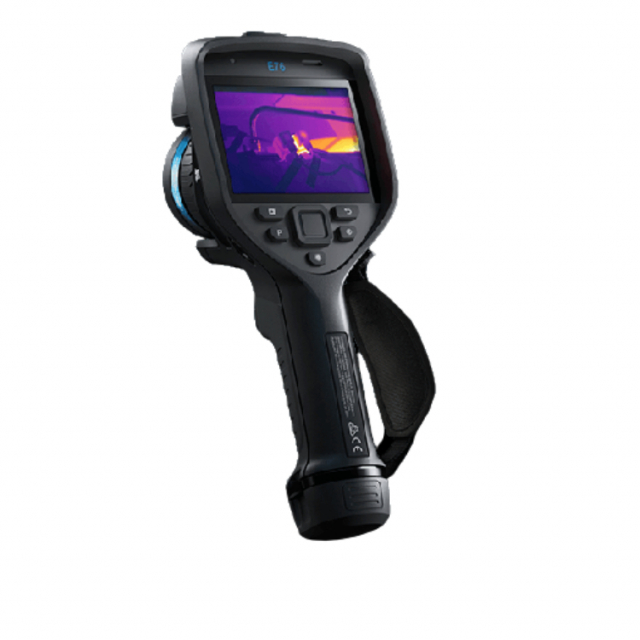

Buy Teledyne FLIR 78511-1101, E76 Advanced Thermal Imaging Camera, 30 Hz, 1.0 m

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

IR Resolution:: IR Resolution: 320 x 240
Minimum Focus Distance:: Minimum Focus Distance: 1.0 m

78511-1101 Includes Only:

Infrared camera with lens
Small viewfinder eyecup
2 batteries
Battery charger
Hard transport case
Lanyards
Front lens cap
Power supplies
Printed documentation
SD card (8 GB)
Cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
License card: FLIR Thermal Studio Starter

Offers complete coverage of near and distant targets through a range of interchangeable AutoCal™ lenses, with fields of view for everything from wide-angle roof inspections to electrical inspections performed from a safe distance. A step up from the FLIR E54, the E76 includes an optional temperature range to 1000°C (1832°F), laser-assisted autofocus, and 3 area measurement boxes. The 320 x 240 thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E76 images directly from the camera to the cloud for easy, secure storage and sharing.

Features:

Telephoto, standard, and wide angle AutoCal™ lenses help users survey large targets quickly, check machines for signs of failure, or inspect electrical systems safely.
Use FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E76 streamline your workday. (*Optional accessory software)

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

IR Resolution	320 x 240 pixels
Thermal Sensitivity/NETD	<50 mK at 30°C (86°F)
Accuracy	±2°C (±3.6°F) or ±2% of the reading
Display	4", 640 x 480 pixel touchscreen LCD with auto-rotation
Storage Media	Removable SD card
Color Palettes	Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type and Pitch	Uncooled microbolometer, 17 µm
Digital Camera	5 MP, with built-in LED photo/video lamp
Digital Zoom	1-4x continuous
f-number	1.5
Focus	Continuous LDM, One-shot LDM, One-shot contrast, Manual
Image Frequency	30 Hz
Lens Identification	Automatic
Minimum Focus Distance	1.0 m
Non-radiometric IR video streaming	H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture	Resizable and movable
Radiometric IR video recording	Real-time radiometric recording (.csq)
Radiometric IR video streaming	Yes, over UVC
Spectral Range	7.5-14 µm
Thermal Sensitivity/NETD	<50 mK at 30°C (86°F)
UltraMax	Yes
Viewfinder	No
Accuracy	±2°C (±3.6°F) or ±2% of the reading
Measurement Presets	No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Object Temperature Range	-20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); Optional 300 to 1000°C (572 to 1832°F)
Spot Meter	3 ea. in live mode
Display	4", 640 x 480 pixel touchscreen LCD with auto-rotation
Text	Predefined list or touchscreen keyboard
Voice	60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
Battery operating time	>2.5 hours at 25°C (68°F) and typical use
Battery Type	Rechargeable Li-ion battery
Operating Temperature Range	-15 to 50°C (5 to 122°F)
Safety	EN/UL/CSA/PSE 60950-1
Storage Temperature Range	-40 to 70°C (-40 to 158°F)
Laser Pointer	Yes

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

IR Resolution	320 x 240 pixels
Thermal Sensitivity/NETD	<50 mK at 30°C (86°F)
Accuracy	±2°C (±3.6°F) or ±2% of the reading
Display	4", 640 x 480 pixel touchscreen LCD with auto-rotation
Storage Media	Removable SD card
Color Palettes	Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type and Pitch	Uncooled microbolometer, 17 µm
Digital Camera	5 MP, with built-in LED photo/video lamp
Digital Zoom	1-4x continuous
f-number	1.5
Focus	Continuous LDM, One-shot LDM, One-shot contrast, Manual
Image Frequency	30 Hz
Lens Identification	Automatic
Minimum Focus Distance	1.0 m
Non-radiometric IR video streaming	H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture	Resizable and movable
Radiometric IR video recording	Real-time radiometric recording (.csq)
Radiometric IR video streaming	Yes, over UVC
Spectral Range	7.5-14 µm
Thermal Sensitivity/NETD	<50 mK at 30°C (86°F)
UltraMax	Yes
Viewfinder	No
Accuracy	±2°C (±3.6°F) or ±2% of the reading
Measurement Presets	No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Object Temperature Range	-20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); Optional 300 to 1000°C (572 to 1832°F)
Spot Meter	3 ea. in live mode
Display	4", 640 x 480 pixel touchscreen LCD with auto-rotation
Text	Predefined list or touchscreen keyboard
Voice	60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
Battery operating time	>2.5 hours at 25°C (68°F) and typical use
Battery Type	Rechargeable Li-ion battery
Operating Temperature Range	-15 to 50°C (5 to 122°F)
Safety	EN/UL/CSA/PSE 60950-1
Storage Temperature Range	-40 to 70°C (-40 to 158°F)
Laser Pointer	Yes

Note

Note: Please read description carefully. Do not base your order on the picture presented.
