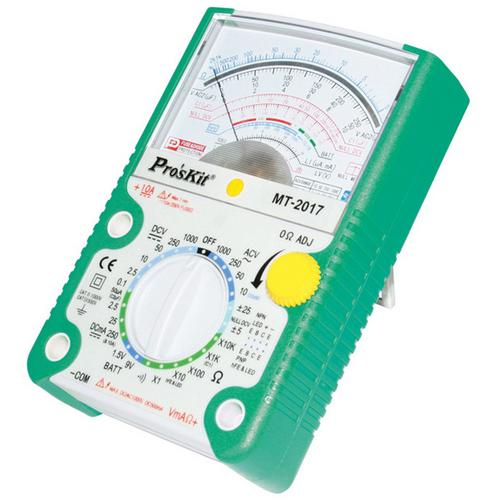

Buy Eclipse Tools MT-2017, Protective Function Analog Multimeter

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Continuity Check:: Continuity Check: Yes

MT-2017 Includes Only:

Analog Multimeter
One pair of Test Leads
Two Spare Fuses: 0.5A/250V & 10A/250V, Φ5x20mm

Features:

Complied with 2008 CE safety standard
Double-sided glass epoxy PCB
Mirrored Aluminum dial plate
20kO/V DC & 9,kO/V AC input sensitivity
Overload and mis-used protection
Adjustable back tilt device with hook-up design
Robust protective holster alongside
Resistance, Current & Voltage measurements
10 Amp DC Range, Transistor hFE Test
Continuity Buzzer and Battery Test
Zero-center meter (Null)
Test leads, batteries, fuse and user's manual included
Ideal for using in the fields of lab, school, home applications and more

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Resources

Reviews

Safety Category

IEC61010-1, CAT II 1000V, CAT III 500V and Pollution Degree 2

Common Environment

23°C±5°CC, less than 75% RH

Temperature Ranges

0°C to 40°C, 32 °F to 104 °F for Operating condition.
10 °C to 50°C, 14 °F to 122°F for Storage condition.

Humidity Scope

Operating condition less than 90% RH.
Storage condition: less than 80% RH.

Size

171(W) x 108(D) x 37(H) MM

Weight

390g approx. (including batteries 3pcs

Test Functions

Range

Accuracy

Remarks

DC V

0-0.1-0.5-2.5-10-50-250 V -1000V

± 3% FSD. ± 4% FSD. For 1000V

Input Impedance: 20KΩ /V Overload Protection: Max. 1000V AC/DC BUT 0.1V/2.5V/10V 250V Max.

Null DCV

±-5V, ±25V

± 5% FSD.

Input Impedance: 40KΩ /V Overload 1000V Max.

AC V

0-10-50-250V -1000V

± 4% FSD. ± 5% FSD. For 1000V

Input Impendence: 9KΩ/V Overload Protection: Max. 1000V AC/DC But 10V/50V only 250V Max. Band width: 40 ~10K Hz

DC mA

0-0.05-2.5-25- 250 mA,

± 3% FSD. ± 4% FSD. For 10A

Drop Voltage: 250 mV Overload protected by Fuses 0.5A/250V & 10A / 250V at 10A range, and Oxide Varactor.<250V AC/ DC(5s). Max. test time 15sec. for 10A.

X 1: 0.2 ~ 2KΩ Midscale at 20Ω
X 10: 2 ~ 20KΩ Midscale at 200Ω
X 100: 20 ~ 200KΩ Midscale at 2000Ω
X1K: 200~ 2MΩ Midscale at 0KΩ
X10K: 2K ~20MΩ Midscale at 200KΩ

± 4% of ARC of Scale Length

Overload protected by the Oxide Varactor & Fuse <250V AC/DC(5s).

Capacit ance (uF)

2000uF(C1)

Approximate Value

Use the R x 1K range

BATT Check

0 ~ 1.5V: GOOD - ? - BAD 0 ~ 9V: GOOD - ? - BAD

± 5% of ARC of Scale Length

Load Current: 270mA for 1.5V, 25mA for 9V. Overload protected by Fuse & Oxide Varactor .<250V AC/DC(5s).

Transist or Check

hFE: 0-1000 via special hFE socket

Approximate Value

At Ω X 10 Range

LED, Diode Check

via special hFE socket

Approximate Value

At Ω X 10 Range

Decibel

-22 dB ~ + 62 dB (0dB=1mW at 600Ω)

Approximate Value

At ACV ranges Via Test Leads

Continuity Check

Beeper sounding under 200 Ohm

Overload protected by Fuse & Oxide Varactor .<250V AC/DC(5s)

POWER Source

Internal Battery: R6P, AA, 1.5V 2pcs, 6F22, NEDA1604, 9V 1pc

Notes
