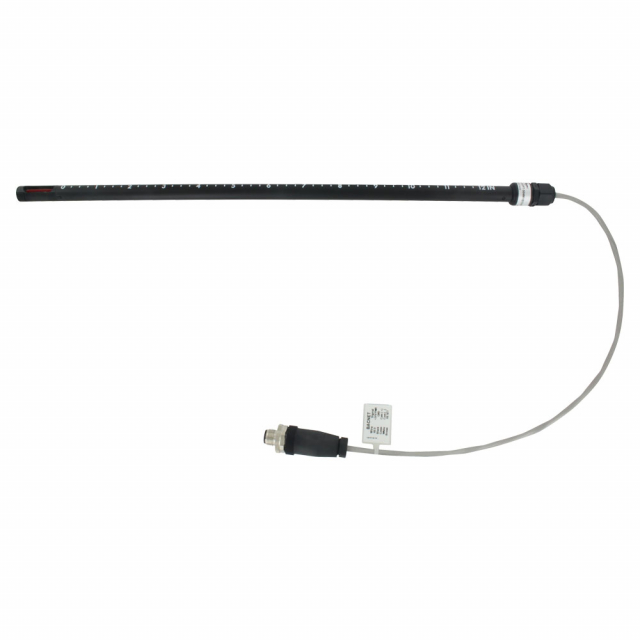

Dwyer AVPT-H15C1A12 Air Velocity Transmitter, 3% Accuracy 15 M/S, 12"

Range: 15 M/S, Accuracy: 3% Accuracy, Probe Length (In): 12"
  • Brand Dwyer
  • Part # AVPT-H15C1A12
  • Model # AVPT Series
  • Condition
    Brand New
Availability
2 Weeks Factory Lead Time
Check Availability
Quantity
Share:

Options and Related Products

Range:
Range: 15 M/S
Accuracy:
Accuracy: 3% Accuracy
Probe Length (In):
Probe Length (In): 12"

Dwyer, AVPT-H15C1A12, Pencil Style Air Velocity Transmitter, 3% Accuracy, 15 M/S, 12"

Features:

  • Sensing elements have been coated with an engineered conformal coating to ensure durability and longevity
  • Varying lengths for easy installation
  • Functionality at temperatures below freezing

The Series AVPT Pencil Style Air Velocity Transmitter uses thermal anemometer technology to provide high accuracy and stable air velocity measurements in imperial and metric units. The Series AVPT can be configured with either a voltage output or BACnet MS/TP communication to provide universal inputs to a variety of monitoring equipment.

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
ServiceClean air.
Probe Length12"
Ranges15 m/s
AccuracyHigh accuracy ±(3% reading +40 FPM);
Power Requirements24 VAC/VDC ±20%.
Current Consumption< 50 mA.
OutputsAnalog 0-10 V (0-5 V configurable).
BACnet MS/TPSelectable at time of order.
Supported Baud Rate9600, 19200, 38400, 57600, 76800, and 115200.
Voltage Output Load Resistance10 kΩ minimum (10 V output with AC supply); 1 kΩ minimum all other conditions.
Electrical ConnectionCable Plenum rated cable with 22 AWG conductors.
5-Conductor Cable whip20" (0.5 m)
Response Time (90%)4 s, typical.
Operational Temperature Limits-4 to 140°F (-20 to 60°C).
Storage Temperature Limits-40 to 140°F (-40 to 60°C).
Enclosure RatingNEMA 3.Mounting Orientation
Weight1.4 oz (40 g)h.
Agency ApprovalsCE, RCM, BTL, UL plenum rated (UL tested).
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
ServiceClean air.
Probe Length12"
Ranges15 m/s
AccuracyHigh accuracy ±(3% reading +40 FPM);
Power Requirements24 VAC/VDC ±20%.
Current Consumption< 50 mA.
OutputsAnalog 0-10 V (0-5 V configurable).
BACnet MS/TPSelectable at time of order.
Supported Baud Rate9600, 19200, 38400, 57600, 76800, and 115200.
Voltage Output Load Resistance10 kΩ minimum (10 V output with AC supply); 1 kΩ minimum all other conditions.
Electrical ConnectionCable Plenum rated cable with 22 AWG conductors.
5-Conductor Cable whip20" (0.5 m)
Response Time (90%)4 s, typical.
Operational Temperature Limits-4 to 140°F (-20 to 60°C).
Storage Temperature Limits-40 to 140°F (-40 to 60°C).
Enclosure RatingNEMA 3.Mounting Orientation
Weight1.4 oz (40 g)h.
Agency ApprovalsCE, RCM, BTL, UL plenum rated (UL tested).
