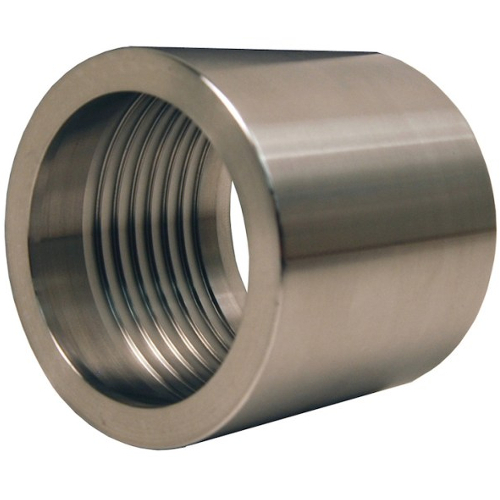

Dixon Valve F24G-2219 304 SS Sanitary Style Crimp Ferrule

Dixon, F24G-2219, 1-1/2" AISI 304 SS Sanitary Style Crimp Ferrule, 2-10/64" - 2-13/64"

Construction

• Ferrules have a surface finish of 63 or better

Applications

• Recommended for food, dairy and pharmaceutical applications where increased flow capacity is important.

Safety notes

• Dixon Sanitary Crimp ferrules are to be used with Dixon Sanitary crimp stems only.
• Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
• Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
• Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
• Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
