Buy Dixon Valve A2180/5, Valve Fixed Pressure Female NPT

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

The actual item's colors maybe different from what is shown on the product picture.

Options and Related Products

Pressure Setting:: Pressure Setting: 5 PSI

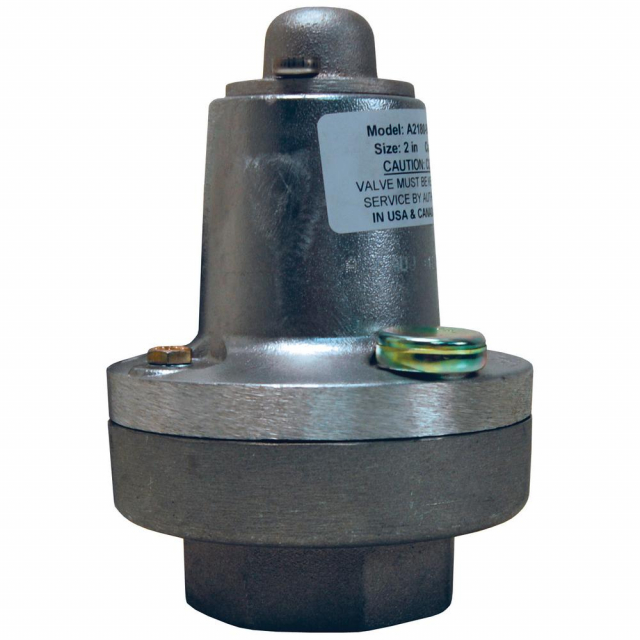

Dixon, A2180/5, 2" Air Relief Valve Fixed Pressure Female NPT, Pressure Setting 5 PSI

Applications

Designed specifically for use on trailer tanks containing dry bulk products. If a system blockage were to occur the valves are designed to vent to atmosphere once the valve pressure setting is achieved.

Use

Trailer/Tank Mounted Air Relief Valve

Specifications

Relieving capacity: 500 to 950 SCFM

Features

Installed cup seal deters tampering
Bayloy body eliminates thread galling

Construction

Bayloy vent cowl with aluminum upper
Bronze poppet
White Food Grade Silicone Diaphragm

Note

Relieving capacity (SCFM) varies dependent upon model and pressure setting.

Safety notes
Not intended for blower service (for blower service applications see the 2182 series air relief valves)

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Material	Aluminum
Component Material	White Food Grade Silicone Diaphragm
Female Thread	NPT
Female Thread Size	2"
Pressure Setting	5 PSI
Set Pressure Tolerance	+1/0 PSI
Weight Lb	4.2000

Notes

***

warning WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov

Product Details

Material	Aluminum
Component Material	White Food Grade Silicone Diaphragm
Female Thread	NPT
Female Thread Size	2"
Pressure Setting	5 PSI
Set Pressure Tolerance	+1/0 PSI
Weight Lb	4.2000

Note

Note: Please read description carefully. Do not base your order on the picture presented.

Reviews

Dixon Valve A2180/5 Valve Fixed Pressure Female NPT

Identifiers

Safety notes
Not intended for blower service (for blower service applications see the 2182 series air relief valves)
