Buy Dino-Lite AM7915MZTL, Edge Microscope Metal Shell

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Magnification Range:: Magnification Range: 10x - 140x

Includes:

	Microscope and cables All necessary cables are included. USB models are powered by the USB connection, analog (direct to monitor) models include a power adaptor cable.
	Software and drivers CD A CD containing all necessary software and drivers to use the device. For computers without a CD drive, the software can be downloaded from the Dino-Lite website.
	Calibration target A target to be used for calibrating measurements.

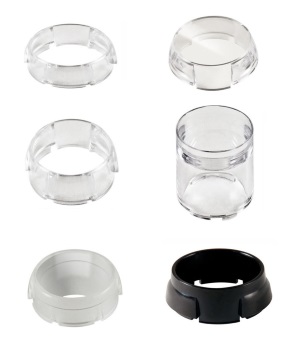

	Alternate end caps A selection of swapable end caps for different applications.

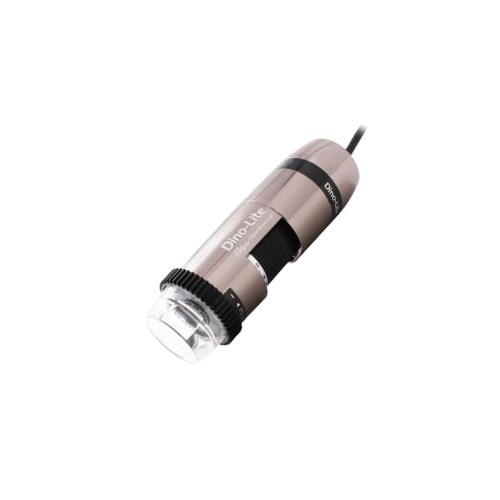

The Dino-Lite 5MP Edge AM7915MZTL delivers high-resolution imaging with a magnification range of 10x - 140x and a longer working distance. This model combines popular image processing feature Extended Depth of Field (EDOF), Extended Dynamic Range (EDR) and Automatic Magnification Reading (AMR). EDOF is an easy-to-use focus stacking feature which captures several images at different focus points and stacks them automatically into one clear image. For high contrast or reflective surfaces, EDR reveals the details of dark or bright areas by stacking images taken at different exposure levels.

Highlights:

	10x - 140x Optical magnification power
	2592 x 1944 pixels Capture in full detail with resolution up to 2592 x 1944 pixels
	USB 2.0 Simple setup
	Windows and Mac Compatible with Windows 7, 8, 10 and Mac OS 10.5+ including 32-bit and 64-bit systems.
	Annotate and Measure Use simple tools to draw lines, shapes and text annotations on the image. Calibrate and measure dimensions including lines, circles and angles.
	Polarizer Built-in adjustable polarizer greatly reduces glare on reflective surfaces.
	Language options Software interface defaults to English and can be changed to any of 25 additional translations.
	Barcode reader Software feature to use camera for reading from QR codes and over 20 other types of barcodes.
	Extended Depth of Field Automatically capture and combine multiple images at different focus levels to produce a final image with greater depth of field.
	Enhanced Dynamic Range Automatically capture and combine multiple images at different exposure levels to create an image with greater dynamic range.
	Automatic Magnification Reading Allows the included software to read the magnification setting from the microscope device, simplifying the measuring process.
	Flexible LED Control Additional LED controls within the included software for adjusting LED brightness and on / off toggle by quadrant.
	Long Working Distance Lens system designed to provide magnification at a longer distance compared to typical microscopes.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

LEDs

White (8)

Polarization

Yes

Dimensions

10.5 cm. (L) x 3.2 cm. (D) / 4.13" x 1.26"

Weight

135 g. / 4.76 oz

Cable Length

182 cm. 71.65"

Magnification Range

10x - 140x

Working Distance

Long

Lens Type

Glass

Megapixels

5 MP

Sensor Type

CMOS

Resolution

2592 x 1944 pixels

Frame Rate (max)

30 FPS

Image Save Formats (Windows)

BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX

Image Save Formats (Mac OS)

JPEG, PNG

Video Save Formats (Windows)

WMV, FLV, SWF

Video Save Formats (Mac OS)

MOV

Connection Type

USB 2.0

Included Software

DinoCapture 2.0 (Windows), DinoXcope (Mac OS)

Imaging Standards

UVC

Flexible LED Control

Yes

Measurement

Yes

Automatic Magnification Reading

Yes

Extended Depth of Field

Yes (Windows PC required)

Enhanced Dynamic Range

Yes (Windows PC required)

Magnification Lock

Yes

Body Material

Aluminum Alloy

Microtouch Sensor

Yes

Manufactured in

Taiwan

Service and Support

U.S. (www.dinolite.us) English and Spanish

Regulatory Approval

CE, FCC

Working distance and field of view:

Magnification

- Working Distance (WD)
- Field of View (FOV)
- Depth of Field

234.5 mm. / 9.232"
39.0 mm. x 31.2 mm. / 1.535" x 1.228"
12.0 mm. / 0.472"

112.5 mm. / 4.429"
19.5 mm. x 15.6 mm. / 0.768" x 0.614"
4.5 mm. / 0.177"

72.5 mm. / 2.854"
13.0 mm. x 10.4 mm. / 0.512" x 0.409"
3.1 mm. / 0.122"

54.5 mm. / 2.146"
9.8 mm. x 7.8 mm. / 0.386" x 0.307"
1.8 mm. / 0.071"

43.5 mm. / 1.713"
7.8 mm. x 6.2 mm. / 0.307" x 0.244"
1.2 mm. / 0.047"

37.5 mm. / 1.476"
6.5 mm. x 5.2 mm. / 0.256" x 0.205"
0.9 mm. / 0.035"

33.7 mm. / 1.327"
5.6 mm. x 4.5 mm. / 0.220" x 0.177"
0.6 mm. / 0.024"

31.3 mm. / 1.232"
4.9 mm. x 3.9 mm. / 0.193" x 0.154"
0.5 mm. / 0.020"

29.9 mm. / 1.177"
4.3 mm. x 3.5 mm. / 0.169" x 0.138"
0.37 mm. / 0.015"

100

29.2 mm. / 1.150"
3.9 mm. x 3.1 mm. / 0.154" x 0.122"
0.28 mm. / 0.011"

110

29.1 mm. / 1.146"
3.5 mm. x 2.8 mm. / 0.138" x 0.110"
0.22 mm. / 0.009"

120

29.3 mm. / 1.154"
3.3 mm. x 2.6 mm. / 0.130" x 0.102"
0.17 mm. / 0.007"

130

29.8 mm. / 1.173"
3.0 mm. x 2.4 mm. / 0.118" x 0.094"
0.12 mm. / 0.005"

140

30.5 mm. / 1.201"
2.8 mm. x 2.2 mm. / 0.110" x 0.087"
0.09 mm. / 0.004"

Product Details

LEDs

White (8)

Polarization

Yes

Dimensions

10.5 cm. (L) x 3.2 cm. (D) / 4.13" x 1.26"

Weight

135 g. / 4.76 oz

Cable Length

182 cm. 71.65"

Magnification Range

10x - 140x

Working Distance

Long

Lens Type

Glass

Megapixels

5 MP

Sensor Type

CMOS

Resolution

2592 x 1944 pixels

Frame Rate (max)

30 FPS

Image Save Formats (Windows)

BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX

Image Save Formats (Mac OS)

JPEG, PNG

Video Save Formats (Windows)

WMV, FLV, SWF

Video Save Formats (Mac OS)

MOV

Connection Type

USB 2.0

Included Software

DinoCapture 2.0 (Windows), DinoXcope (Mac OS)

Imaging Standards

UVC

Flexible LED Control

Yes

Measurement

Yes

Automatic Magnification Reading

Yes

Extended Depth of Field

Yes (Windows PC required)

Enhanced Dynamic Range

Yes (Windows PC required)

Magnification Lock

Yes

Body Material

Aluminum Alloy

Microtouch Sensor

Yes

Manufactured in

Taiwan

Service and Support

U.S. (www.dinolite.us) English and Spanish

Regulatory Approval

CE, FCC

Working distance and field of view:

Magnification

- Working Distance (WD)
- Field of View (FOV)
- Depth of Field

234.5 mm. / 9.232"
39.0 mm. x 31.2 mm. / 1.535" x 1.228"
12.0 mm. / 0.472"

112.5 mm. / 4.429"
19.5 mm. x 15.6 mm. / 0.768" x 0.614"
4.5 mm. / 0.177"

72.5 mm. / 2.854"
13.0 mm. x 10.4 mm. / 0.512" x 0.409"
3.1 mm. / 0.122"

54.5 mm. / 2.146"
9.8 mm. x 7.8 mm. / 0.386" x 0.307"
1.8 mm. / 0.071"

43.5 mm. / 1.713"
7.8 mm. x 6.2 mm. / 0.307" x 0.244"
1.2 mm. / 0.047"

37.5 mm. / 1.476"
6.5 mm. x 5.2 mm. / 0.256" x 0.205"
0.9 mm. / 0.035"

33.7 mm. / 1.327"
5.6 mm. x 4.5 mm. / 0.220" x 0.177"
0.6 mm. / 0.024"

31.3 mm. / 1.232"
4.9 mm. x 3.9 mm. / 0.193" x 0.154"
0.5 mm. / 0.020"

29.9 mm. / 1.177"
4.3 mm. x 3.5 mm. / 0.169" x 0.138"
0.37 mm. / 0.015"

100

29.2 mm. / 1.150"
3.9 mm. x 3.1 mm. / 0.154" x 0.122"
0.28 mm. / 0.011"

110

29.1 mm. / 1.146"
3.5 mm. x 2.8 mm. / 0.138" x 0.110"
0.22 mm. / 0.009"

120

29.3 mm. / 1.154"
3.3 mm. x 2.6 mm. / 0.130" x 0.102"
0.17 mm. / 0.007"

130

29.8 mm. / 1.173"
3.0 mm. x 2.4 mm. / 0.118" x 0.094"
0.12 mm. / 0.005"

140

30.5 mm. / 1.201"
2.8 mm. x 2.2 mm. / 0.110" x 0.087"
0.09 mm. / 0.004"

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
