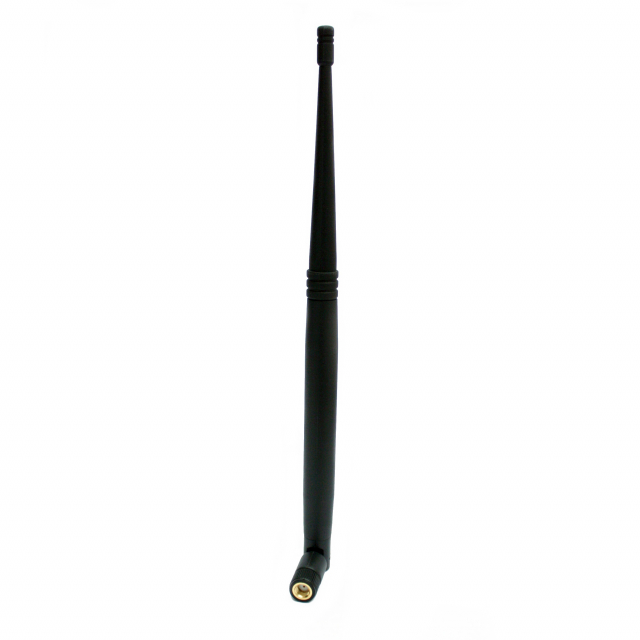

Buy Comark RF504, High Gain Antenna

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

Omni-Directional Antenna with Pivot
Band Gain: 7dBi (2.4GHz)
Length: 235mm

Use the RF504 High Gain Antenna for the RF500A and RF500AP Gateways, as well as the RF512, RF513 and RF516 Transmitters, to transmit temperature and humidity data.

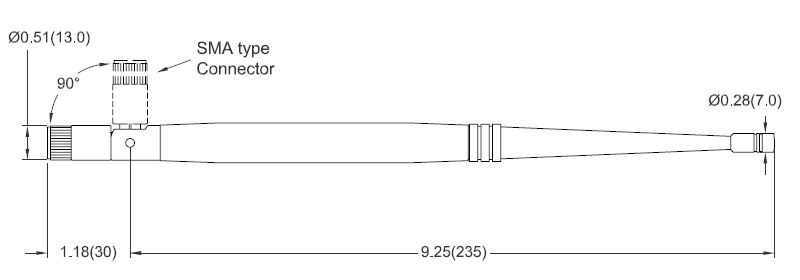

Dimensions_Horizontal_BW

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Antenna Type	External, removable, omni-directional antenna with pivot
Length	235mm from pivot
(2.4Ghz) Band Gain	7dBi
Voltage Standing Wave Ratio (VSWR)	<2.0:1
Impedance	50 Ω (ohms) nominal
Radiation	Omni
Polarization	Vertical
Frequency	2400-2500MHz (2.4～2.5 GHz)
Operating Temperature	-20°C to +65°C / -4°F to +149°F
Storage Temperature	-30°C to +75°C / -22°F to +167°F
Connector Type	RP-SMA
Material	Whip & Swivel: Polyurethene (Black), Connector: Brass with black chrome plating
Compliance	RoHS compliant

Product Details

Antenna Type	External, removable, omni-directional antenna with pivot
Length	235mm from pivot
(2.4Ghz) Band Gain	7dBi
Voltage Standing Wave Ratio (VSWR)	<2.0:1
Impedance	50 Ω (ohms) nominal
Radiation	Omni
Polarization	Vertical
Frequency	2400-2500MHz (2.4～2.5 GHz)
Operating Temperature	-20°C to +65°C / -4°F to +149°F
Storage Temperature	-30°C to +75°C / -22°F to +167°F
Connector Type	RP-SMA
Material	Whip & Swivel: Polyurethene (Black), Connector: Brass with black chrome plating
Compliance	RoHS compliant

Note

Note: Please read description carefully. Do not base your order on the picture presented.
