Buy Cleveland C57155, Plug Chamfer Spiral Point Tap - Mega Depot

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

H-Limit:: H-Limit: H5

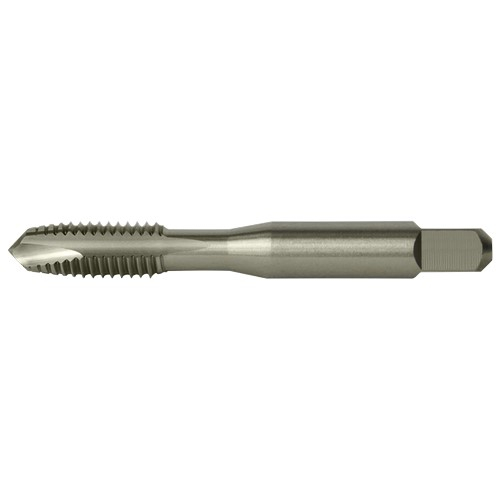

Cleveland, C57155, 5/16"-18 H5 3F Plug Chamfer Spiral Point Tap - Bright

Features

List Style: 1011
Material: HSS
Shank: Straight w/ Square
Tap Blank Construction: USCTI Table 302A
Tap Chamfer: Plug
Tap Construction: Standard
Tap Style: Spiral Point Tap
Surface Condition: Bright
Thread Size: 5/16-18
Thread Form: UNC
Number of Flutes: 3
H-Limit: H5
Decimal Equivalent: 0.3125" / 7.94mm
Shank Diameter: 0.3180" / 8.08mm
Shank Square Size: 0.2380" / 6.05mm
Shank Square Length: 0.3750" / 9.52mm
Thread Length: 1.1250" / 28.57mm
Overall Length: 2.7188" / 69.06mm

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	1011
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.6900"
Thread Length (Metric)	17.53mm
Thread Pitch	18
Thread Size	5/16"
Thread Tolerance	2B-3B
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	3
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H5
Tap Spiral Point	Yes
Tap Style	Spiral Point Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Tool Size	5/16-18 UNC
Dimensions
Diameter	0.3125"
Overall Length	2.7200"
Overall Length (Metric)	69.09mm
Shank Size	0.3180"
Shank Size (Metric)	8.08mm
Shank Square Length	0.3750"
Shank Square Length (Metric)	9.52mm
Shank Square Size	0.2380"
Shank Square Size (Metric)	6.05mm
Tap Neck Length	0.4500"
Application
Depth of Cut	2xD
Material Application	N: Non-ferrous Metal, P: Steel
Operation Type	Thru Hole

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

General
List Style Number	1011
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.6900"
Thread Length (Metric)	17.53mm
Thread Pitch	18
Thread Size	5/16"
Thread Tolerance	2B-3B
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	3
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H5
Tap Spiral Point	Yes
Tap Style	Spiral Point Tap
Tap Truncated Threads	No
Tap Type	Machine Tap
Tool Size	5/16-18 UNC
Dimensions
Diameter	0.3125"
Overall Length	2.7200"
Overall Length (Metric)	69.09mm
Shank Size	0.3180"
Shank Size (Metric)	8.08mm
Shank Square Length	0.3750"
Shank Square Length (Metric)	9.52mm
Shank Square Size	0.2380"
Shank Square Size (Metric)	6.05mm
Tap Neck Length	0.4500"
Application
Depth of Cut	2xD
Material Application	N: Non-ferrous Metal, P: Steel
Operation Type	Thru Hole
