Options and Related Products

Surface Condition:: Surface Condition: Bright
Diameter:: Diameter: 0.2969"

Cleveland, C32563, .2969" x 2.5" HGC-4C Cobalt Multi Flute Center Cutting End Mill

Features

ANSI Sizes
General Purpose
4+ Flute CC
M42 Cobalt Substrate
Bright
TiN
TiCN
High red hardness for high heat conditions.
Heavy cross-section for high rigidity.

Applications

Titanium Alloys
Nickel Alloys
Cobalt Alloys
Stainless Steel

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

List Style	HGC-4C
Construction	General Purpose Finisher
Material	Cobalt
Shank	Straight with Weldon Flats
Hand of Spiral Cut	RHS / RHC
Center Cutting	Yes
Double Ended	No
End Style	Square
Number of Flutes	4
Surface Condition	Bright
Diameter Fractional	19/64"
Decimal Equivalent	0.2969" / 7.54mm

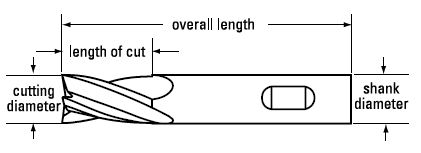

Shank Diameter	0.3750" / 9.52mm
Length of Cut	0.7500" / 19.05mm
Overall Length	2.5000" / 63.50mm

Product Details

List Style	HGC-4C
Construction	General Purpose Finisher
Material	Cobalt
Shank	Straight with Weldon Flats
Hand of Spiral Cut	RHS / RHC
Center Cutting	Yes
Double Ended	No
End Style	Square
Number of Flutes	4
Surface Condition	Bright
Diameter Fractional	19/64"
Decimal Equivalent	0.2969" / 7.54mm
Shank Diameter	0.3750" / 9.52mm
Length of Cut	0.7500" / 19.05mm
Overall Length	2.5000" / 63.50mm

Note: Please read description carefully. Do not base your order on the picture presented.
