Cherne 312228 I-Series Muni-Ball Plug with 2" MNTP Bypass

  • Brand Cherne
  • Part # 312228
  • Condition
    Brand New
Availability
4-6 Weeks Factory Lead Time
Check Availability
Quantity
Share:

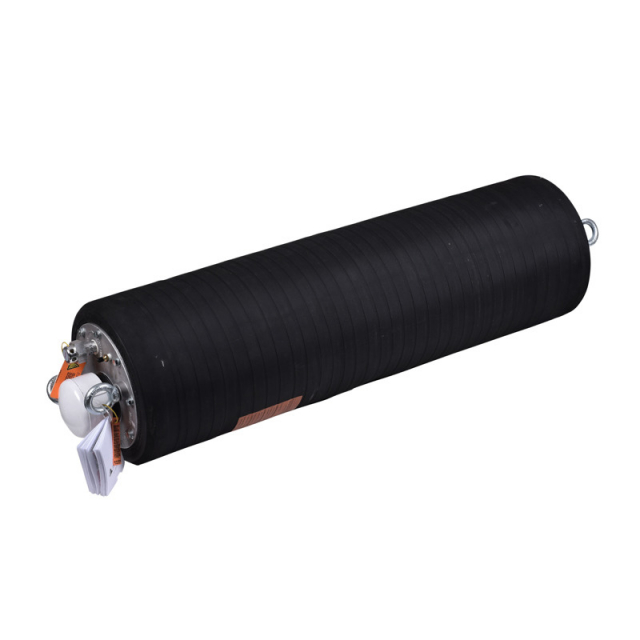

Cherne, 312228, 12-24" I-Series Muni-Ball Plug with 2" MNTP Bypass

Cherne I-Series Muni Ball Plug are designed to meet the needs of U.S. and international markets in terms of size and expansion range. Cherne Industries is a global leader in pipe plugs and testing.

Features:

  • Superior expansion range
  • Full body cording for added durability
  • Small deflated diameters
  • Aluminum end plates minimize rust
  • 3/4" eyebolts
  • Pressure relief valve protects plug from over inflation
  • Flexible bypass hoses
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Weight35.2 lbs
Maximum Back Pressure15 PSI
Inflation Pressure45 PSI (3 bar)
Usage Range15 - 32" (375 - 800 mm)
Deflated Length37"
Bypass Diameter2" M
Inflation Thread1/4"
Nominal Size12 in. - 24 in. (300 - 600 mm)
ColorBlack
Plug TypeBypass
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Weight35.2 lbs
Maximum Back Pressure15 PSI
Inflation Pressure45 PSI (3 bar)
Usage Range15 - 32" (375 - 800 mm)
Deflated Length37"
Bypass Diameter2" M
Inflation Thread1/4"
Nominal Size12 in. - 24 in. (300 - 600 mm)
ColorBlack
Plug TypeBypass
Note

Note: Please read description carefully. Do not base your order on the picture presented.
