Package Quantity: Pack of 25 pcs

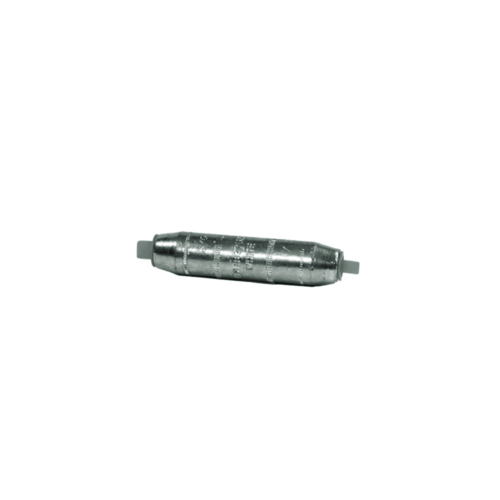

Burndy, YRB31U2, 10102096 Aluminum Electro Tin Plated Reducer, 350 AWG

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Color Code	Brown
Connector Type	Splice Reducer
Die Index	299
Feature - Barrel Style	Chamfered
Material	Aluminum
Plated	Y
Plating Type	Tin - Electro Plated
Temperature Rating	194
Trade Name	HYREDUCER™
Dimension - B Length fraction	1-3/4 in
Dimension - B Length inch	1.73 in
Dimension - L Length Overall mm	107 mm
Dimension - Length Overall inch	4.21 in
Dimension - Outside Diameter inch	1.11 in
Dimension - Strip Length inch	1-13/16
Rating - KVA	35 kV
Rating - Minimum Voltage	600
Voltage - Maximum	35000
Conductor - AL Str Size A	350 AWG
Conductor - AL Str Size A Range	350 AWG
Conductor - AL Str Size B	4/0
Conductor - AL Str Size B Range	4/0
Conductor - Copper Str Size	350 AWG
Conductor - Copper Str Size B	4/0
Conductor - Copper Str Size B Range	4/0
Certification - CSA Approved	No
Certification - ETL	No
Certification - UL Recognized	No
Certification - cULus	No
Industry Standard(s)	UL 486A-486B
Standards - Industry Standards Met	UL 486A-486B
Standards - RoHS Compliance Status	CM
UL Listed	Yes
