Buy Burndy YH8C8CWC, Copper Compression H Tap with Cover

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

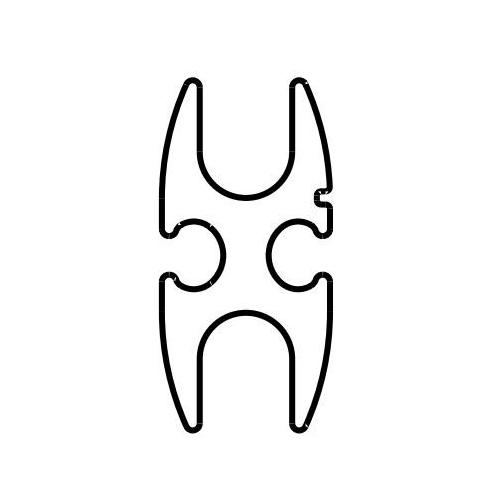

Burndy, YH8C8CWC, Copper Compression H Tap with Cover, #8 - #14 AWG / #8 - #14 AWG

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Color Code	Green
Connector Type	H-Tap
Die Index	11
Material	Copper
Plated	Y
Plating Type	Tin - Electro Plated
Temperature Rating	194
Type	Compression Taps
Dimension - L Length Overall mm	15 mm
Dimension - Length Overall inch	0.60 in
Dimension - Strip Length inch	3/4
Dimension - Width inch	0.63 in
Rating - KVA	35 kV
Rating - Minimum Voltage	600
Voltage - Maximum	35000
Conductor - Copper Flex G Run	14; 8
Conductor - Copper Flex G Tap	14; 8
Conductor - Copper Flex H Tap	14; 8
Conductor - Copper Flex I Run	14; 8
Conductor - Copper Flex I Tap	14; 8
Conductor - Copper Flex K Run	14; 8
Conductor - Copper Flex K Tap	14; 8
Conductor - Copper Flex M Run	14; 8
Conductor - Copper Flex M Tap	14; 8
Conductor - Copper Str Run	14; 12; 10; 9; 8
Conductor - Copper Str Tap	14; 12; 10; 9; 8
Certification - CSA Approved	Yes
Certification - UL Recognized	No
Certification - cULus	No
Standards - RoHS Compliance Status	CM
UL Listed	Yes
