Buy Burndy YH4444WCC, Copper Compression H Tap with Clear Cover

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

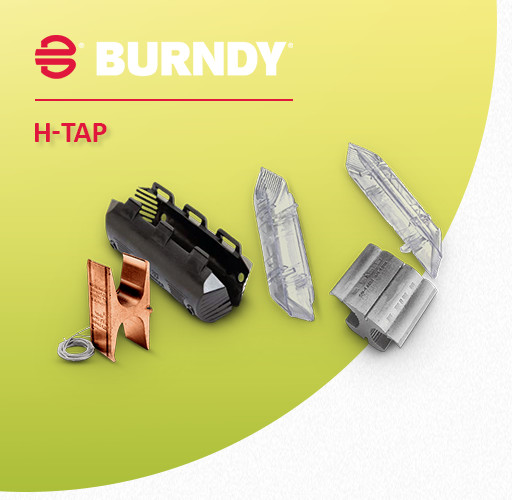

Burndy, YH4444WCC, Copper Compression H Tap with Clear Cover, 1000 - 750 Kcmil / 1000 - 750 Kcmil

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Color Code	White
Connector Type	H-Tap
Die Index	1102
Item Type	3B
Material	Copper
Plated	Y
Plating Type	Tin - Electro Plated
Temperature Rating	194
Type	Compression Taps
Dimension - L Length Overall mm	25 mm
Dimension - Length Overall inch	1.00 in
Dimension - Strip Length inch	1-1/8
Dimension - Width inch	3.38 in
Rating - KVA	35 kV
Rating - Minimum Voltage	600
Voltage - Maximum	35000
Conductor - Copper Flex G Run	500; 600; 700
Conductor - Copper Flex G Tap	500; 600; 700
Conductor - Copper Flex H Tap	500; 600; 700
Conductor - Copper Flex I Run	500; 550; 600; 700
Conductor - Copper Flex I Tap	500; 550; 600; 700
Conductor - Copper Flex K Run	500; 600; 700
Conductor - Copper Flex K Tap	500; 600; 700
Conductor - Copper Flex M Run	500; 600; 700
Conductor - Copper Flex M Tap	500; 600; 700
Conductor - Copper Str Run	700; 750; 800; 850; 900; 1000
Conductor - Copper Str Tap	750; 800; 850; 900; 1000
Certification - CSA Approved	Yes
Certification - UL Recognized	No
Certification - cULus	No
Standards - RoHS Compliance Status	CM
UL Listed	Yes
