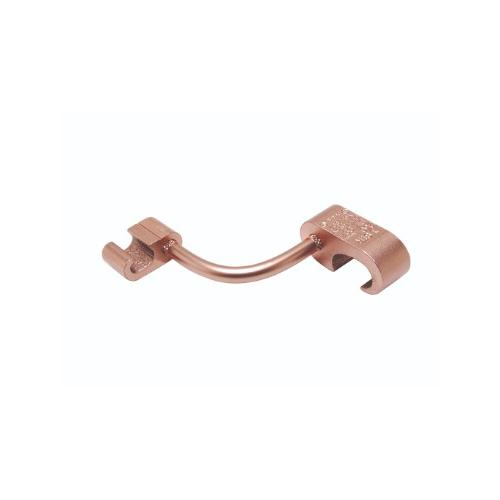

Burndy, YGL2C2, Copper Compression Cross Grid Connector, #6 - #2 AWG

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Connector Type	Tap
Item Type	3B
Material	Copper
Oxide Inhibitor Type	Penetrox E
Plated	N
Plating Type	Unplated
Prefilled Oxide Inhibitor	Y
Type	Taps
Dimension - B Length fraction	3/4 in
Dimension - B Length inch	0.75 in
Dimension - D inch	0.31 in
Dimension - L Length Overall mm	64 mm
Dimension - Length BB inch	0.75 in
Dimension - Length Overall inch	2.50 in
Dimension - Pad Width inch	1.09 in
Conductor - Copper Solid Size A	6 AWG; 5 AWG; 4 AWG; 3 AWG; 2 AWG
Conductor - Copper Solid Size A Range	6 AWG-2 AWG
Conductor - Copper Solid Size B	6 AWG; 5 AWG; 4 AWG; 3 AWG; 2 AWG
Conductor - Copper Solid Size B Range	6 AWG-2 AWG
Conductor - Copper Str Size A	6 AWG; 5 AWG; 4 AWG; 3 AWG; 2 AWG
Conductor - Copper Str Size A Range	6 AWG-2 AWG
Conductor - Copper Str Size B	6 AWG; 5 AWG; 4 AWG; 3 AWG; 2 AWG
Conductor - Copper Str Size B Range	6 AWG-2 AWG
Conductor Type	CU C Solid-Size A; CU C Str-Size A; Rod-Size A; Rebar-Size A; CU C Solid-Size B; CU C Str-Size B
Certification - CSA Approved	Yes
Certification - ETL	No
Certification - UL Listed Direct Burial	Yes
Certification - UL Recognized	No
Certification - cULus	No
Industry Standard(s)	UL467; IEEE 837; IEEE 837 2014 Qualified
Standards - RoHS Compliance Status	CM
UL Listed	Yes

Notes
