Buy Burndy YAV8CLNK, #10 Ring Terminal for #8 AWG, Nickel Plated, (Pack of 200 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

The actual item's colors maybe different from what is shown on the product picture.

Package Quantity: Pack of 200 pcs

Options and Related Products

Size:: Size: #10

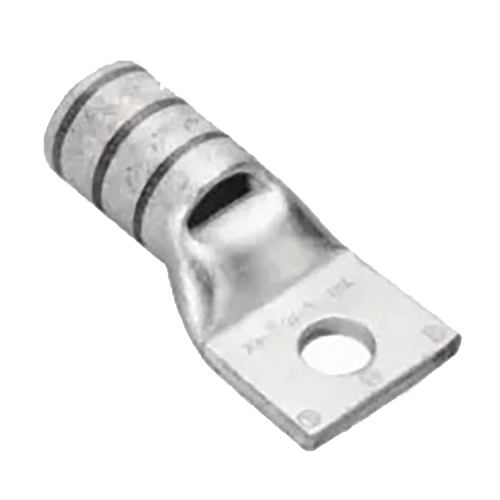

Burndy, YAV8CLNK, #10 Uninsulated Ring Terminal for #8 AWG, Nickel Plated

Features:

Hylug Type YAV is a seamless, heavy-duty uninsulated compression terminal manufactured from electrolytic Copper and is for use on Type AN aircraft cable, extra flexible conductors, and commercial (code) conductors
The seamless tubing produces a double thick tongue and the seamless barrel design provides a strong connector for demanding applications requiring high reliability

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Connector Type

Ring Terminal

Feature - Barrel Style

Chamfered

Feature - Barrel Type

Standard

Insulation

Material

Copper

Physical Attribute - Number of Holes

Physical Attribute - Tongue Type

Ring

Plated

Plating Type

Nickel

Trade Name

Hylug

Type

Ring Tongue

Dimension - B Length fraction

4/9 in

Dimension - B Length inch

0.44 in

Dimension - Bolt Size fraction

#10

Dimension - D inch

0.47 in

Dimension - Length Overall inch

1.08 in

Dimension - N inch

0.2 in

Dimension - Outside Diameter inch

0.27 in

Dimension - Pad Width inch

0.41 in

Dimension - Stud Size inch

#10

Dimension - Thread Size

Conductor - Copper Solid Size Range

N/A

Conductor - Copper Str Aircraft Size Range

N/A

Conductor - Copper Str Navy Size Range

N/A

Conductor - Copper Str Size

8 AWG

Conductor - Copper Str Size Range

8 AWG

Conductor Size

8 AWG

Conductor Type

Copper C Str-Size
Copper C Str Aircraft-Size

Certification - CSA Approved

Certification - ETL

Certification - UL Recognized

Certification - cULus

Industry Standard(s)

UL467

Standards - Industry Standards Met

UL467

Standards - RoHS Compliance Status

UL Listed

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Details

Connector Type

Ring Terminal

Feature - Barrel Style

Chamfered

Feature - Barrel Type

Standard

Insulation

Material

Copper

Physical Attribute - Number of Holes

Physical Attribute - Tongue Type

Ring

Plated

Plating Type

Nickel

Trade Name

Hylug

Type

Ring Tongue

Dimension - B Length fraction

4/9 in

Dimension - B Length inch

0.44 in

Dimension - Bolt Size fraction

#10

Dimension - D inch

0.47 in

Dimension - Length Overall inch

1.08 in

Dimension - N inch

0.2 in

Dimension - Outside Diameter inch

0.27 in

Dimension - Pad Width inch

0.41 in

Dimension - Stud Size inch

#10

Dimension - Thread Size

Conductor - Copper Solid Size Range

N/A

Conductor - Copper Str Aircraft Size Range

N/A

Conductor - Copper Str Navy Size Range

N/A

Conductor - Copper Str Size

8 AWG

Conductor - Copper Str Size Range

8 AWG

Conductor Size

8 AWG

Conductor Type

Copper C Str-Size
Copper C Str Aircraft-Size

Certification - CSA Approved

Certification - ETL

Certification - UL Recognized

Certification - cULus

Industry Standard(s)

UL467

Standards - Industry Standards Met

UL467

Standards - RoHS Compliance Status

UL Listed

Note

Note: Please read description carefully. Do not base your order on the picture presented.
