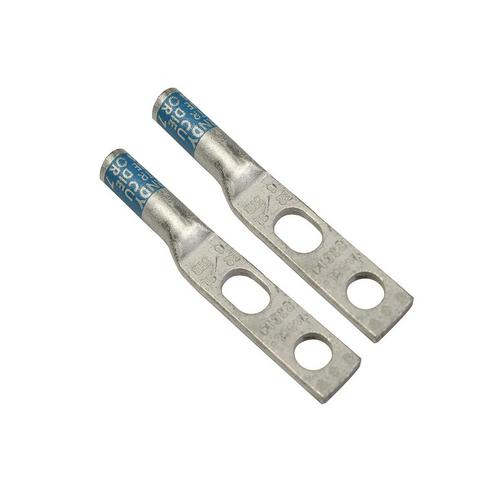

Buy Burndy YA6C2TC38SL, 25020079 Copper Two Hole Hylug 3/8", (Pack of 50 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Copper Two Hole HYLUG™ - Long Barrel ,6 AWG,3/8" Bolt Hole with 1" Spacing,Tin Plated,Color: Blue,Die Index: 7.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Color Code	Blue
Connector Type	Terminal
Die Index	7
Feature - Barrel Style	Chamfered
Feature - Barrel Type	Standard
Material	Copper
Physical Attribute - Number of Holes	2
Physical Attribute - Tongue Type	Straight
Plated	Y
Plating Type	Tin
Trade Name	HYLUG
Type	Standard Barrel, Tin Plated
UPC	781810237311
UPC 12 Digit	7818102373111
Dimension - B Length inch	1.12
Dimension - Bolt Hole Size inch	0.4
Dimension - Hole Size inch	0.4
Dimension - Hole Size mm	10
Dimension - L Length Overall mm	82
Dimension - Length Overall inch	3.22
Dimension - N inch	0.41
Dimension - Outside Diameter inch	0.29
Dimension - Pad Width inch	0.58
Dimension - Strip Length inch	1-3/16 in
Dimension - Stud Size inch	3/8 in
Dimension - Z inch	0.43 in
Physical Attribute - Tongue Angle	Straight
Rating - KVA	35 kV
Voltage - Maximum	35000
Conductor - Copper Solid Size	6 AWG
Conductor - Copper Str Navy Size	30 (19) Navy
Conductor - Copper Str Navy Size Range	30 (19) Navy
Conductor - Copper Str Size	6 AWG
Conductor - Copper Str Size Range	6 AWG
Conductor - Material	Copper

Notes
