Buy Burndy WCR33, Wejtap Connector Assembly, 0.258 Run, 0.230 Tap, (Pack of 25 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

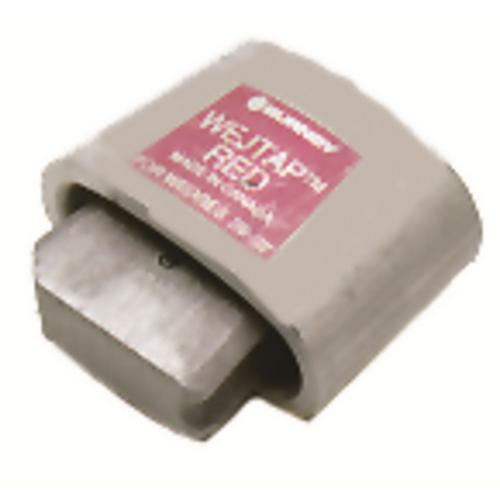

Burndy, WCR33, Wejtap Connector Assembly, 0.258 Run, 0.230 Tap

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Color	Red
Connector Type	Tap
Item Type	3C
Material	Copper
Trade Name	WEJTAP
UPC	781810872208
UPC 12 Digit	7818108722088
Dimension - F Width Center to Center inch	1.40 in
Dimension - G inch	0.92 in
Conductor - ACSR Str Run	6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG
Conductor - ACSR Str Run Range	6 (6/1) Turkey AWG-4 (7/1) Swanate AWG
Conductor - ACSR Str Tap	6 (6/1) Turkey AWG;5 (6/1) Thrush AWG
Conductor - ACSR Str Tap Range	6 (6/1) Turkey AWG-5 (6/1) Thrush AWG
Conductor - AL Str Run	8 AWG;6 AWG;4 AWG
Conductor - AL Str Run Range	8 AWG-4 AWG
Conductor - AL Str Tap	8 AWG;6 AWG;4 AWG
Conductor - AL Str Tap Range	8 AWG-4 AWG
Certification - CSA Approved	No
Certification - UL Recognized	No
Certification - cULus	No
Standards - RoHS Compliance Status	CM
UL Listed	No

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Color	Red
Connector Type	Tap
Item Type	3C
Material	Copper
Trade Name	WEJTAP
UPC	781810872208
UPC 12 Digit	7818108722088
Dimension - F Width Center to Center inch	1.40 in
Dimension - G inch	0.92 in
Conductor - ACSR Str Run	6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG
Conductor - ACSR Str Run Range	6 (6/1) Turkey AWG-4 (7/1) Swanate AWG
Conductor - ACSR Str Tap	6 (6/1) Turkey AWG;5 (6/1) Thrush AWG
Conductor - ACSR Str Tap Range	6 (6/1) Turkey AWG-5 (6/1) Thrush AWG
Conductor - AL Str Run	8 AWG;6 AWG;4 AWG
Conductor - AL Str Run Range	8 AWG-4 AWG
Conductor - AL Str Tap	8 AWG;6 AWG;4 AWG
Conductor - AL Str Tap Range	8 AWG-4 AWG
Certification - CSA Approved	No
Certification - UL Recognized	No
Certification - cULus	No
Standards - RoHS Compliance Status	CM
UL Listed	No

Note: Please read description carefully. Do not base your order on the picture presented.
