Brady HX-C-375-WT PermaSleeve White 0.375" x 75' Cable Tubing

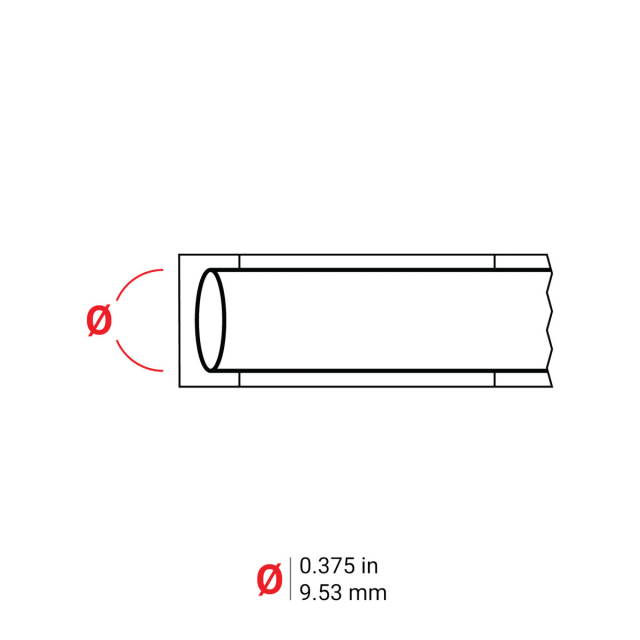

Sleeve Diameter (in): 0.375
  • Brand Brady
  • Part # HX-C-375-WT
  • Model # PermaSleeve
  • Condition
    Brand New
Buy in Bulk 4 Applicable Promotion(s)
Show All

  • Buy 10 pcs, get 5% off

    Save 5% each on Brady HX-C-375-WT PermaSleeve White 0.375" x 75' Cable Tubing when you purchase 10 or more

  • Buy 5 pcs, get 4% off

    Save 4% each on Brady HX-C-375-WT PermaSleeve White 0.375" x 75' Cable Tubing when you purchase 5 or more

  • Buy 3 pcs, get 3% off

    Save 3% each on Brady HX-C-375-WT PermaSleeve White 0.375" x 75' Cable Tubing when you purchase 3 or more

  • Buy 2 pcs, get 2% off

    Save 2% each on Brady HX-C-375-WT PermaSleeve White 0.375" x 75' Cable Tubing when you purchase 2 or more

Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Sleeve Diameter (in):
Sleeve Diameter (in): 0.375

Brady, HX-C-375-WT, PermaSleeve White 0.375" x 75' 2:1 Heat Shrink Wire and Cable Tubing for 3" Core Printers

Features:

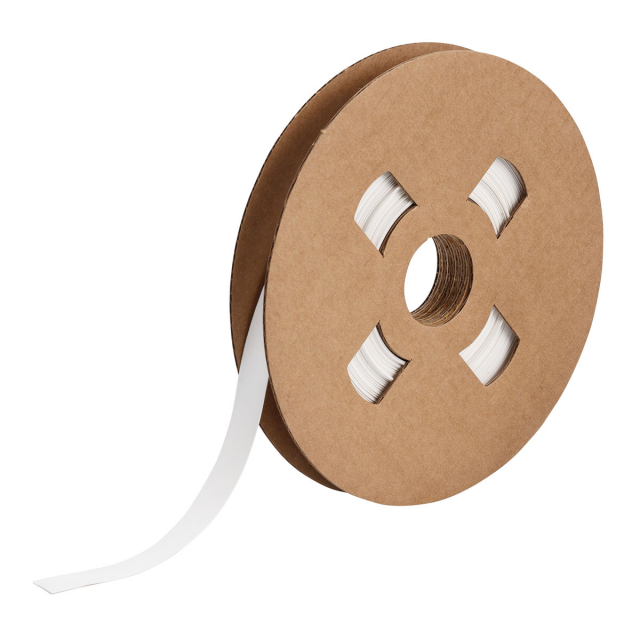

  • Supplied roll form in a flattened format on a carrier designed for use with computer-driven printers
  • Meets SAE-AMS-DTL-23053/5 Class 1 and 3, SAE-AS-81531, MIL-STD-2002
  • Tested per ASTM E162 and ASTM E662
  • Operating temperature of -40°F to 248°F (-40°C to 120°C)
  • A ribbon is required to print this material. Use Part Number R6406

Applications:

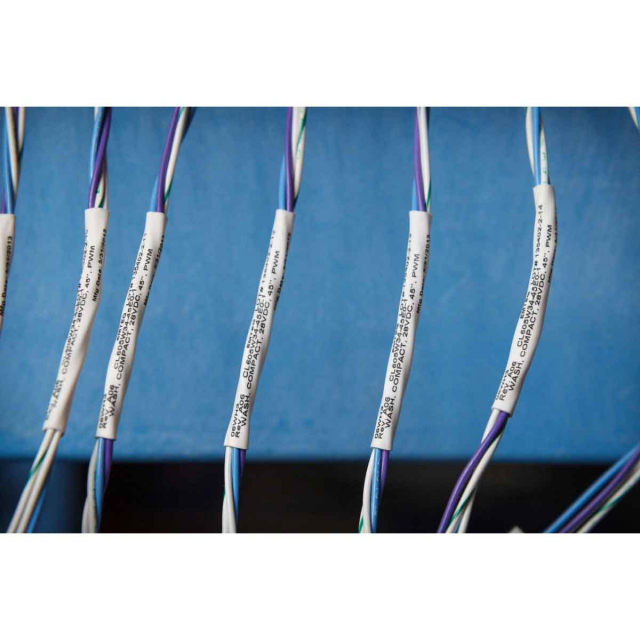

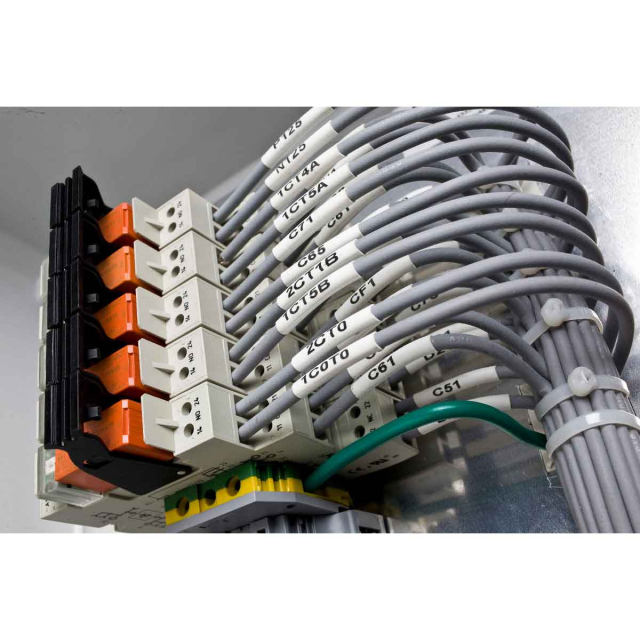

  • Wire and Cable Labeling

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Printable SidesSingle-Side Printable
RoHS Compliance StatusCompliant with Directive 2011/65/EU and 2015/863
Recovered Diameter0.187 in
Recovered Wall Thickness0.025 in
Core Diameter1.625 in
Height0.645 in
Sleeve Size0.375 in Dia x 75 ft L
Country of OriginUnited States of America
Print TechnologyThermal Transfer
ColorWhite
Resistance PropertiesChemical-resistant, Self-Extinguishing, Smear-resistant
MaterialHeat-shrink Polyolefin
Label PropertiesHeat Shrink
Material PropertiesHeat-shrinkable
Service Temperature Range °F-40 °F - 248 °F
Material NumberB-7642
FinishMatte
Shrink Ratio2:1
Printer CompatibilityBBP72, i7100, THT 3
Recommended RibbonR6406
Wire Diameter Range0.188 in to 0.32 in
Wire Gauge Range8 AWG - 4 AWG
Product Details
Printable SidesSingle-Side Printable
RoHS Compliance StatusCompliant with Directive 2011/65/EU and 2015/863
Recovered Diameter0.187 in
Recovered Wall Thickness0.025 in
Core Diameter1.625 in
Height0.645 in
Sleeve Size0.375 in Dia x 75 ft L
Country of OriginUnited States of America
Print TechnologyThermal Transfer
ColorWhite
Resistance PropertiesChemical-resistant, Self-Extinguishing, Smear-resistant
MaterialHeat-shrink Polyolefin
Label PropertiesHeat Shrink
Material PropertiesHeat-shrinkable
Service Temperature Range °F-40 °F - 248 °F
Material NumberB-7642
FinishMatte
Shrink Ratio2:1
Printer CompatibilityBBP72, i7100, THT 3
Recommended RibbonR6406
Wire Diameter Range0.188 in to 0.32 in
Wire Gauge Range8 AWG - 4 AWG
Note

Note: Please read description carefully. Do not base your order on the picture presented.
