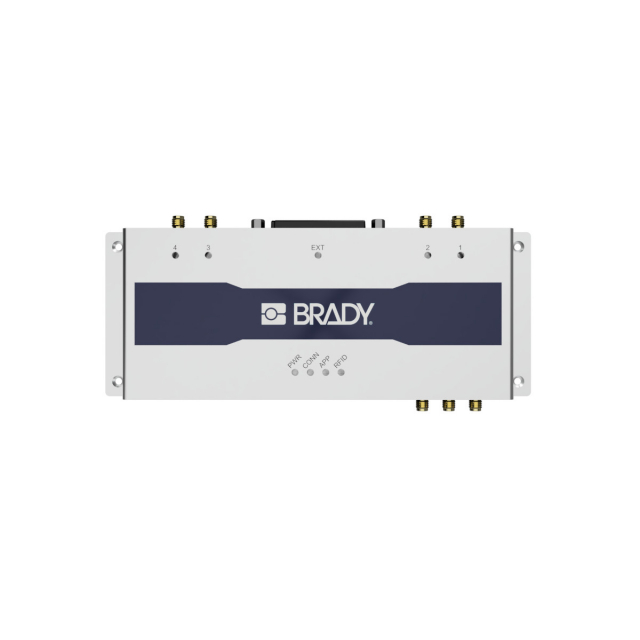

Buy Brady B-FR22-RFID-RDR-US, Fixed UHF RFID Reader

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Package Includes:: Package Includes: Fixed UHF RFID Reader

Features:

Features integrated Bluetooth, Wi-Fi, LAN, USB, and GPIO, as well as HDMI video output
Linux OS provides edge computing capabilities, allowing users to run plugins or applications directly on the FR22 reader
Plug and play support for accessories including a 16-port antenna multiplexor and beam forming antenna with 28 individual beams for directionality detection

Applications:

Asset Tracking
Inventory and Inspection Labeling
RFID labeling
Temperature Indicating Labeling

Offering unparalleled flexibility and connectivity, the FR22 Fixed RFID reader enables automated data collection and exchange between a variety of platforms and use cases.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Central Processing Unit (CPU)	Quad-core A7 1.1GHz
Connectivity	Bluetooth, Ethernet, GPIO Industrial mini IO port, GSM/EDGE, LTE-FDD B1/B3/B5/B7/B8/B20, LTE-TDD B38/B40/B41, USB Host, USB-C, WCDMA B1/B5/B8, Wireless 802.11 a/b/g/n, Wireless 802.11 b/g
Display Type	None
Memory	1GB RAM, 8GB Flash
Power Supply Voltage	100 - 240 V at 50 - 60 Hz
Mounting Type	4 Screws (not included)
Power Requirements	Max 25.5 W. 4W idle
Operating System	Linux
ISO Conformance Standards	ISO 18000-63 (EPC Class 1Gen2v2)
Data Management	Nordic ID RADEA
API Support	NUR API for RFID and RESTful service to access reader configuration
Audio	Integrated Buzzer
Connector	Brady extension port
External Antenna Port	4 ports RP-SMA female
HDMI	Video 1280 x 720 and 640 x 480 resolution
Ingress Protection Rating	IP20
RoHS Compliance Status	Compliant with Directive 2011/65/EU and 2015/863
Dimensions	0.69 in H x 8 in W x 3.09 in D
Reading Speed	Up to 1000 tags per second
Weight	0.674 lb
Country of Origin	Finland
Device Indicators	4 LEDs indicating the enabled antennas, Application LED, Connection LED, Extension port LED, Power LED, RF LED
Color	Silver, Blue

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Central Processing Unit (CPU)	Quad-core A7 1.1GHz
Connectivity	Bluetooth, Ethernet, GPIO Industrial mini IO port, GSM/EDGE, LTE-FDD B1/B3/B5/B7/B8/B20, LTE-TDD B38/B40/B41, USB Host, USB-C, WCDMA B1/B5/B8, Wireless 802.11 a/b/g/n, Wireless 802.11 b/g
Display Type	None
Memory	1GB RAM, 8GB Flash
Power Supply Voltage	100 - 240 V at 50 - 60 Hz
Mounting Type	4 Screws (not included)
Power Requirements	Max 25.5 W. 4W idle
Operating System	Linux
ISO Conformance Standards	ISO 18000-63 (EPC Class 1Gen2v2)
Data Management	Nordic ID RADEA
API Support	NUR API for RFID and RESTful service to access reader configuration
Audio	Integrated Buzzer
Connector	Brady extension port
External Antenna Port	4 ports RP-SMA female
HDMI	Video 1280 x 720 and 640 x 480 resolution
Ingress Protection Rating	IP20
RoHS Compliance Status	Compliant with Directive 2011/65/EU and 2015/863
Dimensions	0.69 in H x 8 in W x 3.09 in D
Reading Speed	Up to 1000 tags per second
Weight	0.674 lb
Country of Origin	Finland
Device Indicators	4 LEDs indicating the enabled antennas, Application LED, Connection LED, Extension port LED, Power LED, RF LED
Color	Silver, Blue

Note

Note: Please read description carefully. Do not base your order on the picture presented.
