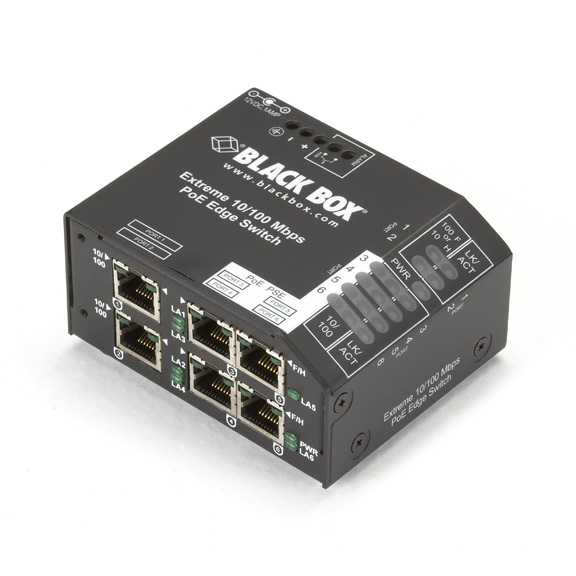

BlackBox, LPH240A-P-48, Extreme PoE PSE Switch with (6) 10/100 RJ-45 Connectors, 48 VDC
Extreme PoE PSE Switch, (6) 10/100 RJ-45, -48 VDC. Powers remote PoE devices in extreme-even outdoor-environments.
Quick Facts
- Features six 10-/100-Mbps RJ-45 ports, four of which are PoE PSE ports.
- Extended temperature range of -40 to +167° F (-40 to +75° C).
- -48-VDC terminal-block power input.
Further Details
Extreme PoE PSE Switches from Black Box power remote PoE devices such as security cameras and traffic signals in extreme environments with uncontrolled temperatures. The switches can even be used outdoors with protection from rainfall and standing water. Rugged metal cases serve as a heat sink to dissipate heat, giving these switches a wide temperature range of -40 to +167° F (-40 to +75° C). Plus, the cases are sealed to resist contaminants such as dust, dirt, moisture, smoke, and insects.
These capable industrial switches are available with six 10-/100-Mbps copper ports, with five 10-/100-Mbps copper ports plus a 100-Mbps fiber uplink port, or with four 10-/100-Mbps copper ports plus two 100-Mbps fiber ports. Fiber ports are available with a variety of connectors, in single- or multimode, and with ranges of up to 20 kilometers. The switches provide 802.3af PoE power for up to four PoE PD devices on four RJ-45 ports.
The switch featured here has six autosensing 10-/100-Mbps copper Ethernet ports, four of which are PoE PSE ports. It's powered by -48-VDC power via terminal block and comes with clips for panel mounting. To DIN rail mount the switch, order the DIN Rail Mounting Bracket (DIN-RAIL MC2).
