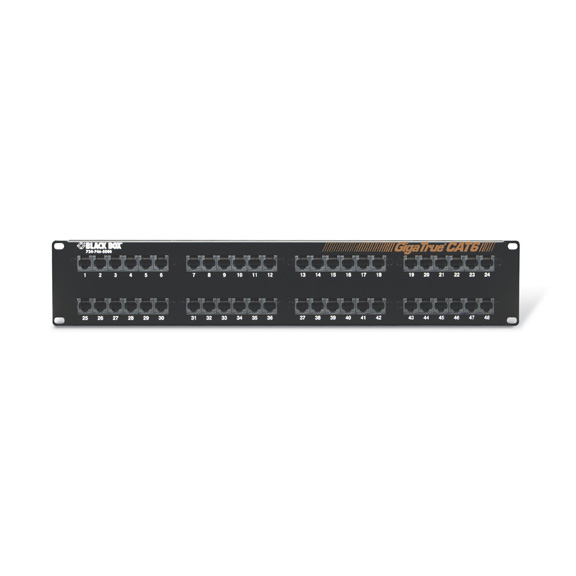

BlackBox JPM612A-R7 GigaTrue CAT6 Patch Panel

BlackBox, JPM612A-R7, GigaTrue CAT6 Patch Panel with Component Level & Universal Wiring (2U), 48-Port

GigaTrue CAT6 Patch Panel, Universal Wiring, Component Level, 48-Port, 2U. Get component level and ETL-verified channel performance.

Quick Facts

• Component level provides better performance and stability in the overall channel.
• Designed for use in our ETL-Verified GigaTrue channel.
• Meet or exceed ANSI/TIA/EIA-568-C CAT6 component performance.
• Guaranteed for life!

Further Details

• Component level provides better performance and stability in the overall channel; the panel by itself can pass CAT6.
• Meets or exceed ANSI/TIA/EIA-568-C.2 Category 6 component performance specifications.
• Tested for NEXT, Power Sum NEXT, FEXT, Return Loss, and attenuation to 250 MHz.

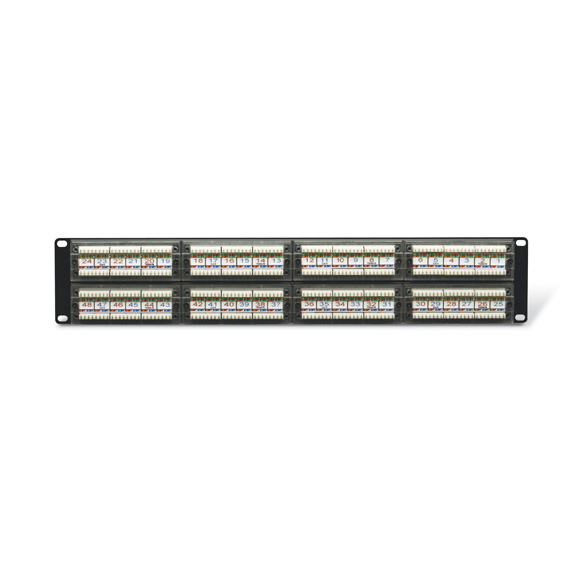

• Universal wiring-panel is supplied with labeling for both T568A and T568B.
• Paired punchdown sequence enables pair twist within 1/2" of termination.
• Redesigned IDC 110 block features peaks to make lacing cable easier.
• Rolled-edge construction provides superior panel rigidity to eliminate flex during termination.
• Includes cable ties and mounting hardware.
• Also available in 24 and GigaTrue CAT6 versions.

These cables work with:

• GigaTrue 6 Patch Cable, 4-Pair (EVNSL641, etc.)
• GigaTrue CAT6 Jacks (FM630-R2-FM640-R2)
• GigaTrue2 CAT6 Jacks (FMT630-R2-FMT640-R2)
