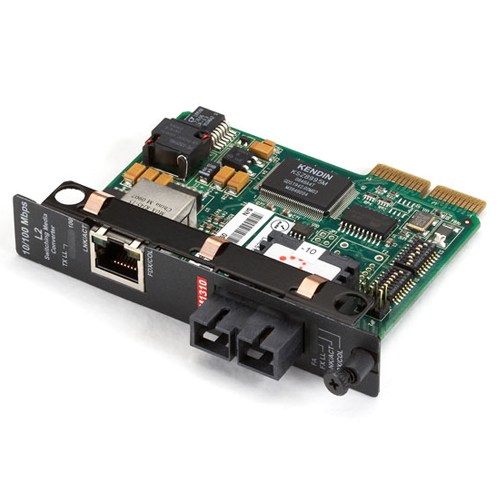

High-Density Media Converter System II Layer 2 Module, 10BASE-T/100BASE-TX to 100BASE-FX, Multimode, 1300-nm, SC, 2 km
Quick Facts
- Converts 10- or 100-Mbps copper to 100-Mbps multimode fiber operating at 1300-nm wavelength.
- True Layer 2 media conversion.
- Works with High-Density Media Converter System II Chassis.
- LinkLoss notifies you of "silent failures" on the copper-to-fiber links.
Further Details
The 10BASE-T/100BASE-TX to 100BASE-FX module featured here has an autosensing 10/100 copper port and a 100-Mbps fiber port. It's a good choice for remote Fast Ethernet connections to Ethernet devices that may later be upgraded to Fast Ethernet.
This High-Density Media Converter System II Layer 2 Module belongs to a large family of modular media converter and communications options that provide an exceptional range of choices for your managed enterprise network.
The High-Density Media Converter System II is particularly well suited for network-extension applications, offering a wide range of hot-swappable media converter modules for network extension over fiber. Additionally, the system offers a range of modules such as T1/E1, VDSL, and ATM that are not usually available with chassis-based media converter systems.
With more than 100 modules to choose from, this system can adapt to even the most demanding network configurations. All media converter modules are hot-swappable - you never need to power down a chassis to change a module.
Unlike Layer 1 media converters, which only convert one Ethernet media type to another, Layer 2 modules for the High-Density Media Converter System II are true switches - they actively store, filter, and forward Ethernet packets like any other MAC-layer switch.
Layer 2 media converters increase network efficiency and reduce network overhead, significantly increasing data throughput.
Because Layer 2 media converters are also switches, they incorporate 10/100 or 10/100/1000 ports in contrast to the single-speed ports of Layer 1 converters. You can set the RJ-45 ports for autonegotiation or set them for 10-, 100-, or 1000-Mbps speed as well as for half- or full-duplex. The fiber port can be set for half- or full-duplex, too.
Twisted-pair ports feature autocrossover ports to eliminate the worry of whether to use straight- or cross-pinned cabling. This built-in MDI/MDI-X function automatically determines whether the converter has to cross over between the four pairs on the twisted-pair port's RJ-45 connector.
This module has LinkLoss, which notifies you of "silent failures" on copper-to-fiber links. LinkLoss enables you to troubleshoot network problems just by looking at the media converter's Link LED - the link status of the fiber segment will always be reflected by the twisted-pair segment so you're informed quickly of fiber problems. The module also features link fault pass-through (LFPT).
The Configuration Control feature retains the latest configuration regardless of whether it was set using DIP switches or SNMP.
