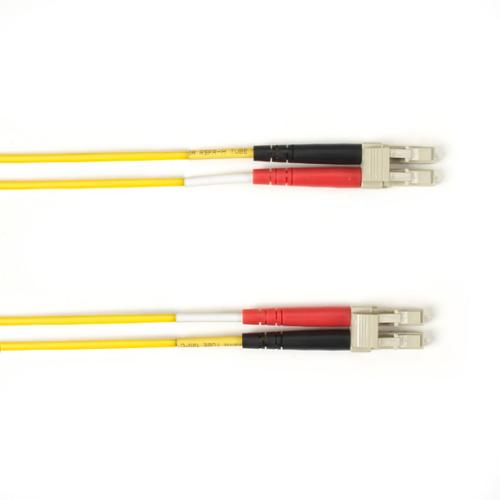

Black Box, FOLZH10015MLCLCYL, OM3 50/125 Multimode Fiber Optic Patch Cable, LSZH, LC-LC, Yellow, 15 m

Features:

Color code fiber networks for different applications, departments, and security levels.
Take your network to 10-GbE.
Low smoke zero halogen jacket reduces the amount of toxic and corrosive gas emitted during combustion.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Diameter	Core: OM3 laser-optimized 50-µm; Cladding: 125-µm
Jacket	Low Smoke Zero Halogen (LSZH)
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Attenuation	=2.3 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 2000 MHz/km at 850 nm; Legacy performance EMB: 1500 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 1000 m at 850 nm; 10 Gbps over 300 m at 1300 nm
Listings	ISO/IEC 11801: Type OM3 fiber; IEC 60793-2-10; Type A1a.2 fiber; TIA 492AAAC

Diameter	Core: OM3 laser-optimized 50-µm; Cladding: 125-µm
Jacket	Low Smoke Zero Halogen (LSZH)
Temperature	Operating Temperature: -76 to 185 F (-60 to 85° C)
Attenuation	=2.3 dB/km at 850 nm; =0.6 dB/km at 1300 nm
Bandwidth	Intermediate performance EMB: 2000 MHz/km at 850 nm; Legacy performance EMB: 1500 MHz/km at 850 nm; 500 MHz/km at 1300 nm
Data Rate (Optimized)	1 Gbps over 1000 m at 850 nm; 10 Gbps over 300 m at 1300 nm
Listings	ISO/IEC 11801: Type OM3 fiber; IEC 60793-2-10; Type A1a.2 fiber; TIA 492AAAC

Note: Please read description carefully. Do not base your order on the picture presented.
